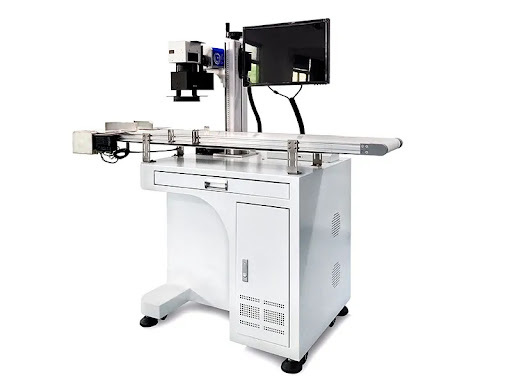

KML-FT Fiber Laser Marking Machine With Visual Positioning System And Conveyor Belt
It provides an overall solution based on the standard marking system, which realizes a multi-item identification and high-precision positioning. The system communicates with the standard marking software through the serial port, which has the characteristics of easy operation, high recognition precision and high speed.
Keywords:
Laser Marking Machine
Introduction:
It provides an overall solution based on the standard marking system, which realizes a multi-item identification and high-precision positioning. The system communicates with the standard marking software through the serial port, which has the characteristics of easy operation, high recognition precision and high speed.
 |

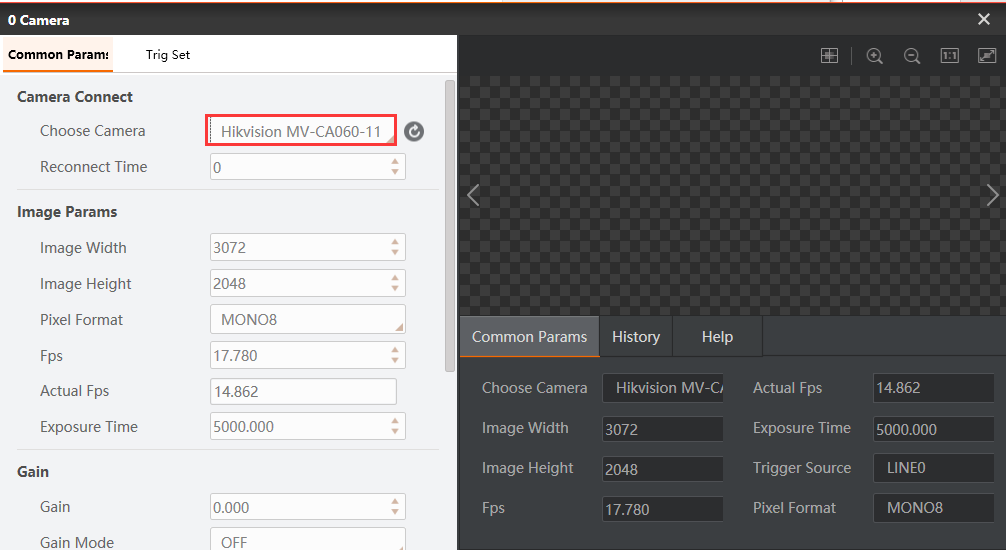

Visual Positioning System, improve marking effeciency : The CCD visual positioning laser marking machine uses the visual positioning system to establish the standard template of the product before processing. During batch processing, the system will automatically take pictures of the product, and the software will compare the image and the template, sending the coordinates and angle information of the product to the scanner head directly, and finally finishing precise position laser marking. |
 |
High Precision and Efficient Cutting Performance: Positioning accuracy ≤0.05mm, repeat positioning accuracy ≤0.03mm, cutting speed up to 3000-6000mm/min, combined with precision guide rails and servo drive systems, ensuring precise cutting trajectory and smooth cuts, meeting fine processing needs. |
 |
Flexible Configuration and Convenient Operation: Supports various specifications of workbenches (optional exchange tables) to adapt to workpieces of different sizes; equipped with a professional CNC system, compatible with CAD, CAM and other design software, can import DXF, PLT and other format files, with an intuitive operation interface, easy for programming and parameter setting. |
 |
Stable Structure and Safety Guarantee: Adopts welded fuselage structure,经过 aging treatment, with strong rigidity and small deformation; equipped with protective cover, emergency stop button, laser safety interlock and other devices to ensure the safety of operators; core components are selected from well-known brands, with high stability and a 3-year warranty. |
Description
This vision positioning laser marking machine has three advantages over traditional laser marking machine:
First, small-sized products are no longer a pain that laser marking or welding does not dare to touch. The addition of visuals makes "small" become "large", and the accuracy problem that cannot be controlled by traditional marking machines can be solved here.
Second, the accuracy of the fixture is no longer the controller of the marking accuracy. The precise positioning of the vision frees the precision of the fixture. At this time, the accuracy of the marking has nothing to do with the fixture.
Third, the angle and location of product placement are no longer constrained. Simply place the product in the light range of the laser airport mirror, and there are no other requirements.
Techinical parameters
|
Model |
KML-FT |
|
Laser Power |
20W 30W 50W 100W |
|
Laser Type |
Fiber Laser |
|
Laser lifespan |
100，000hrs |
|
Marking speed |
7000mm/s |
|
Optical quality |
≤1.4 m2 ( sqm) |
|
Marking area |
110mm*110mm / 200*200mm / 300*300mm |
|
Min.Line |
0.01mm |
|
Laser wavelength / beam |
1064 nm |
|
Positioning Accuracy |
± 0.01 mm |
|
Graphic format supported |
PLT, BMP, DXF, JPG, TIF, AI, PNG, JPG, etc formats; |
|
Power supply |
Ac 220 v ± 10% , 50 Hz |
|
Cooling method |
Air cooling |
This visual positioning laser marking machine provides an overall solution based on the standard marking system, which realizes a multi-item identification and high-precision positioning. At present, the positioning accuracy of the system can reach up to 0.1mm, and for different formats the accuracy is different, and the working range can reach 110*110mm. The system communicates with the standard marking software through the serial port, which has the characteristics of easy operation, high recognition precision and high speed.
Knoppo laser was founded in 2004, and our laser machine have got CE and FDA certifications, quality control in accordance with ISO9001 quality system standard, and we exported our products to many countries and regions.We also provide complete metal working system including fiber laser cutting machine , fiber laser welding machine, fiber laser cleaning machine , fiber laser marking machine, CO2 laser marking machine and UV laser marking machine , production date batch number serial number laser marking machine and other laser equipment.
