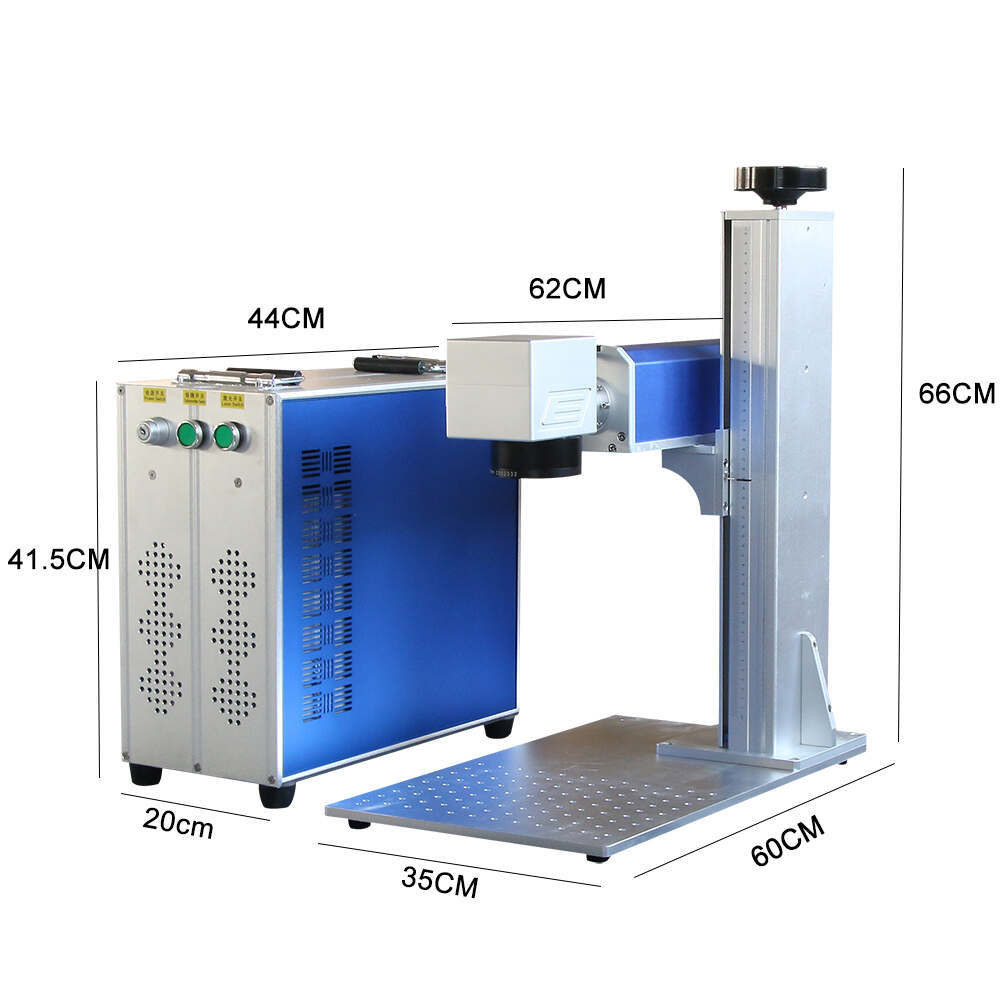

KML-FS Split Type Laser Marking Machine
KML-FS mopa fiber laser marking machine can engrave on metal , aluminium and stainless steel with color , and with JPT mopa laser source, No.1 brand in China . 20w , 30w , 60w and 100w laser power is available .
Keywords:
Laser Marking Machine
Introduction:
KML-FS mopa fiber laser marking machine can engrave on metal , aluminium and stainless steel with color , and with JPT mopa laser source, No.1 brand in China . 20w , 30w , 60w and 100w laser power is available .
 |
Color Marking Capability and Wide Material Adaptability: Adopts China's leading brand JPT M7 MOPA laser source, capable of color engraving on metals (aluminum, stainless steel, etc.) and applicable to glass and some nonmetals; suitable for industries such as machinery parts, jewelry, medical instruments, and auto parts. |
 |
High Precision and High-Speed Marking Performance: Minimum marking line width of 0.01mm, positioning accuracy of ±0.01mm, marking speed up to 7000mm/s, and laser lifespan of 100,000 hours; supports various graphic formats like PLT, BMP, DXF, meeting fine processing needs. |
 |
Flexible Parameter Adjustment and Professional Application Advantages: MOPA structure supports independent adjustment of pulse width and frequency, excelling in scenarios such as surface stripping of aluminum oxide sheets, blackening of anodized aluminum, and precision processing of electronics and semiconductors, which Q-switched lasers struggle with. |
 |
Reliable Configuration and Convenient Operation: Equipped with SINO-GALVO scanner (high positioning accuracy, fast speed, strong anti-interference) and EZCAD software (compatible with various industrial lasers and digital galvanometers), supports 110V/220V power supply, uses air cooling, and comes with a 3-year warranty. |
Parameters
|
Model |
KML-FS |
|
Wavelength |
1070nm |
|
Marking Area |
110*110mm / 200*200mm / 300*300mm |
|
Laser Power |
20W 30W 60W 100W |
|
Min Marking Line |
0.01mm |
|
Positioning Accuracy |
± 0.01 mm |
|
Laser lifespan |
100，000hrs |
|
Marking speed |
7000mm/s |
|
Graphic format supported |
PLT, BMP, DXF, JPG, TIF, AI, PNG, JPG, etc formats; |
|
Power supply |
Ac 110v/220 v ± 10% , 50 Hz |
|
Cooling method |
Air cooling |
Application
Applicable Materials
Engrave on stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal , also can engrave on glass and some nonmetal etc.
Applicable Industries
Machinery parts, animal tags, small gift ,ring , electrics , wheel , kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields.
 |
EZCAD software EZCAD software is one of the most popular laser and galvo control software especially in the laser marking industry. With the proper controller, it is compatible with most of the industrial laser in the market: Fiber, CO2, UV, Mopa fiber laser... and digital laser galvo . |
 |

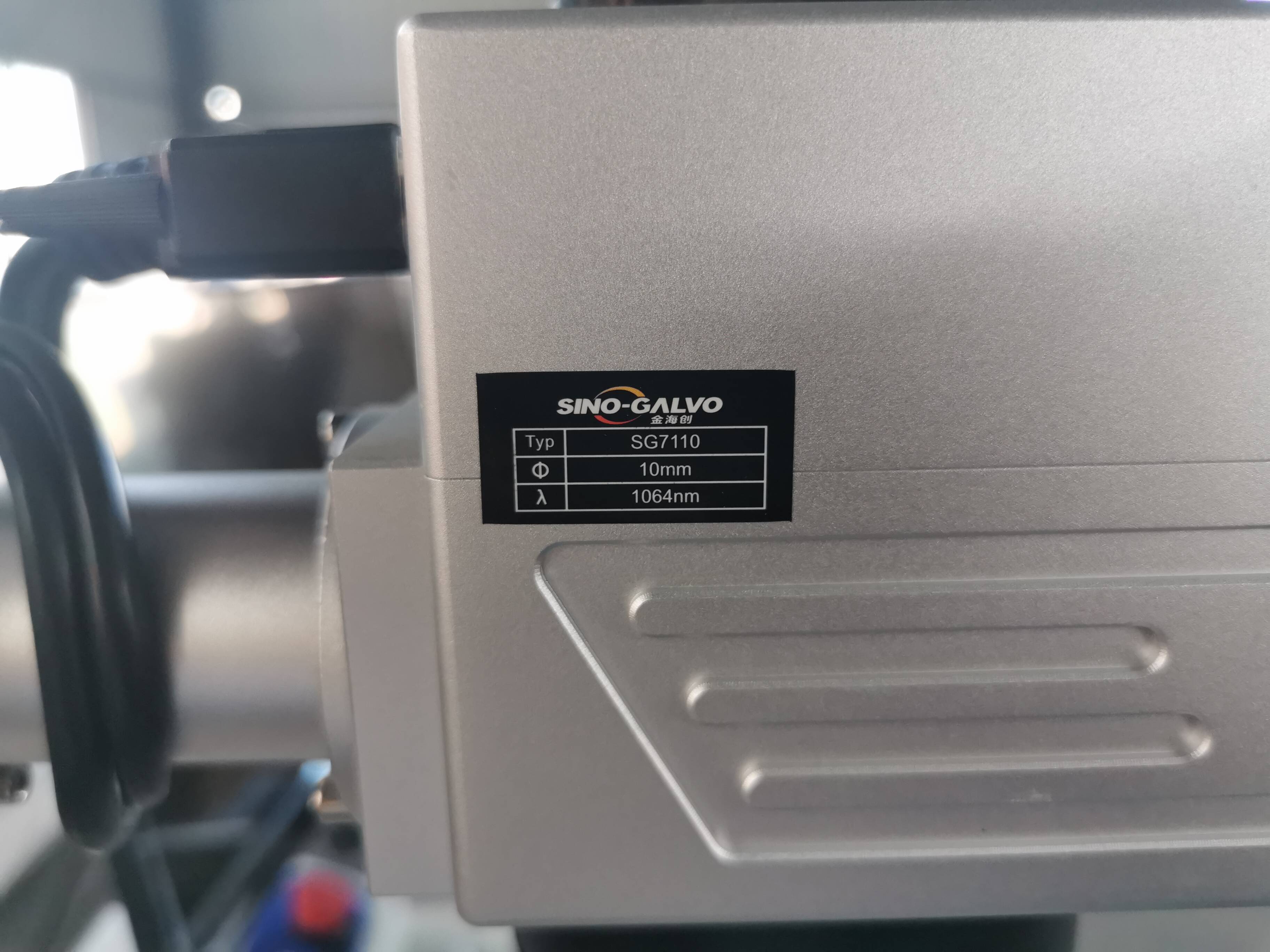

SINO-GALVO Scanner SINO-Galvo Scanner has compact design, high positioning accuracy, higher marking speed, and strong anti-interference ability. In the process of dynamic marking, the marking line has high precision, distortion free, power uniform; pattern without distortion, the overall performance has reached the international leading level in the field. |
 |

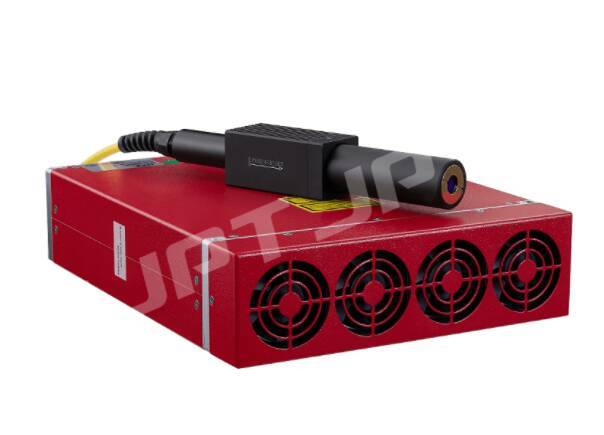

JPT M7 Mopa Fiber Laser Source JPT M7 series high power pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. And enable JPT laser suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications. |
Mopa Fiber Laser And Q-Switched Fiber Laser
1. Application of surface stripping of aluminum oxide sheet
Now, electronic products are becoming thinner and lighter. Many mobile phones, tablets, and computers use thin and light aluminum oxide as the product shell. When using a Q-switched laser to mark conductive positions on a thin aluminum plate, it is easy to cause deformation of the material and produce "convex hulls" on the back, which directly affects the aesthetics of the appearance. The use of the MOPA laser's smaller pulse width parameters can make the material not easy to deform, and the shading is more delicate and brighter. This is because the MOPA laser uses a small pulse width parameter to make the laser stay on the material shorter, and it has high enough energy to remove the anode layer, so for the processing of stripping the anode on the surface of the thin aluminum oxide plate, MOPA Lasers are a better choice.
2. Anodized aluminum blackening application
Using lasers to mark black trademarks, models, texts, etc. on the surface of anodized aluminum materials, this application has gradually been widely used by electronic manufacturers such as Apple, Huawei, ZTE, Lenovo, Meizu and other electronics manufacturers in the housing of electronic products in the past two years. On the top, it is used to mark the black mark of the trademark, model, etc. For such applications, only MOPA lasers can process them at present. Because the MOPA laser has a wide pulse width and pulse frequency adjustment range, the use of narrow pulse width, high frequency parameters can mark the surface of the material with black effects, and different parameter combinations can also mark different grayscale effects.
3. Electronics, semiconductors, ITO precision processing applications
In precision processing such as electronics, semiconductors, and ITO, fine scribing applications are often used. The Q-switched laser is unable to adjust the pulse width parameter due to its own structure, so it is difficult to draw fine lines. The MOPA laser can flexibly adjust the pulse width and frequency parameters, which can not only make the scribed line fine, but also the edge will appear smooth and not rough.
