KCL-XM Metal And Nonmetal CO2 Laser Engraver And Cutter
KCL1390XM CO2 laser cutter can cut metal , iron , carbon steel , stainless steel , acrylic, wood, MDF, plywood, leather, cloth and PVC plastic etc, also can engrave on glass, acrylic, wood and other nonmetal.
Keywords:
CO2 Laser Cutting Machine
Introduction:
KCL1390XM CO2 laser cutter can cut metal , iron , carbon steel , stainless steel , acrylic, wood, MDF, plywood, leather, cloth and PVC plastic etc, also can engrave on glass, acrylic, wood and other nonmetal.
 |
Multi-Material Compatible Cutting and Engraving Head: Capable of cutting metals (iron, carbon steel, stainless steel, etc., 1.2mm stainless steel) and nonmetals (acrylic, wood, leather, fabric, PVC plastic, etc.), as well as engraving on materials like glass, acrylic, and wood. It is suitable for industries such as mold making, advertising, decoration, arts and crafts, electronics, and electrical appliances. |
 |

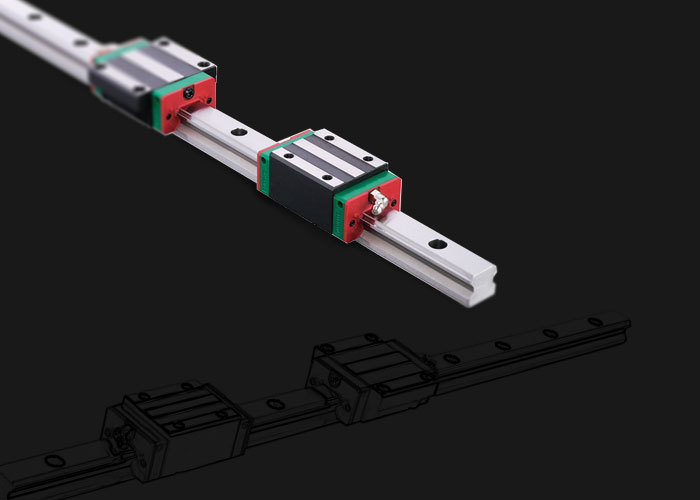

High Precision Rails : Features positioning accuracy of ≤0.05mm, maximum scanning precision of 4000DPI, minimum engraving size of 1.0mm*1.0mm, cutting speed of 0-40000mm/min, and engraving speed of 0-60000mm/min, ensuring fine processing and efficient production. |
 |
Convenient Operation and Wide Compatibility: Supports Wifi control, compatible with various software like Illustrator, Photoshop, and Coreldraw, and can handle multiple graphic formats such as DST, PLT, and BMP. It is equipped with user-friendly software plug-ins for simple operation. |
 |

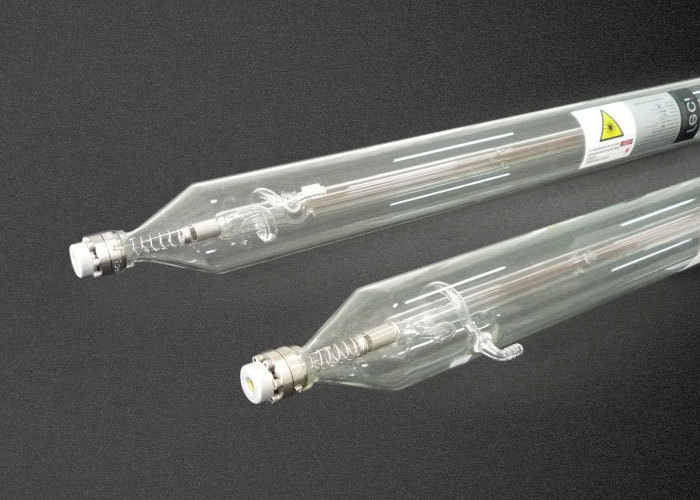

Reliable Configuration and Durable Design: Adopts Taiwanese stepper motors, Japanese Omron electronic components, and RECI laser tubes (with a lifespan of up to 10,000 hours), along with square guide rail systems, high-quality Taiwanese belts, and precision ball screw drives to ensure stable operation of the equipment. |
Parameters
|
Model |
KCL-XM |
|
Laser Power |
150W 180W 260W 300W |
|
Working Area |
1300*900mm |
|
Laser Type |
RECI CO2 Sealed Laser Tube ,10.6um |
|
Cooling Type |
Water Cooling |
|
Engraving Speed |
0-60000mm/min |
|
Cutting Speed |
0-40000mm/min |
|
Laser Output Control |
0-100% set by software |
|
Min. Engraving Size |
1.0mm*1.0mm |
|
Highest Scanning Precision |
4000DPI |
|
Locating Accuracy |
<= 0.05mm |
|
Controlling Software |

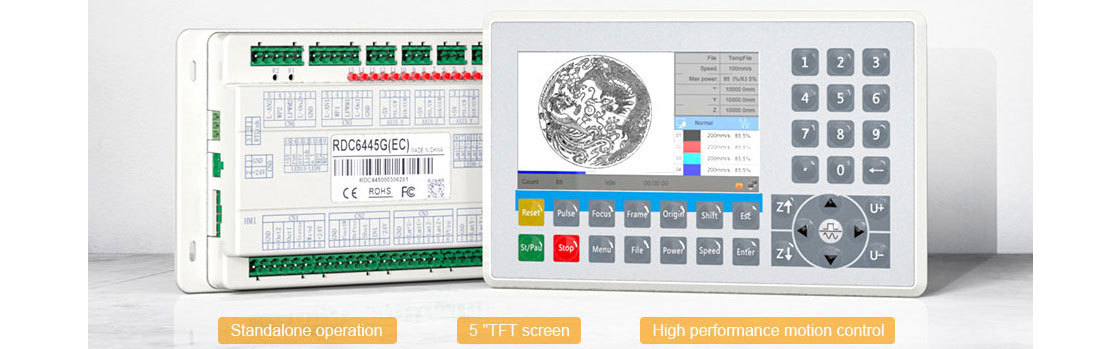

Ruida Control System |
|
Graphic Format Supported |
DST ,PLT, BMP ,DXF, DWG, AI ,LAS etc |
|
Compatible Software |
Illustrator , Photoshop , Coreldraw , Austocad , Solidworks etc |
|
Colour Separation |
Yes |
|
Drive System |
High precision 3-phase stepper motor |
|
Auxillary Equipment |
Exhaust Fan and Air Exhaust Pipe |
|
Power Supply |
AC 220V+10% , 50HZ |
|
Working Environment |
Temperature: 0~45C , Humidity :5~95% ( No Condensate Water ) |
Application
Applicable Industry Of CO2 Laser Cutting Engraving Machine
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising signs, decoration, arts and crafts, electronics, electric appliances, etc.
Applicable Materials Of CO2 Laser Cutting Engraving Machine
Materials such as acrylic, wood planks(light planks, candlenut wood), bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, metal , carbon steel , stainless steel , iron
