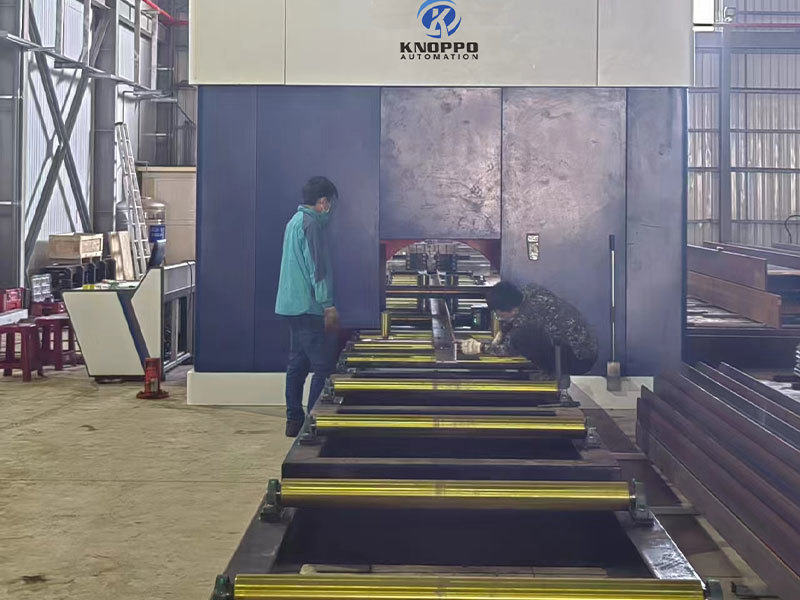

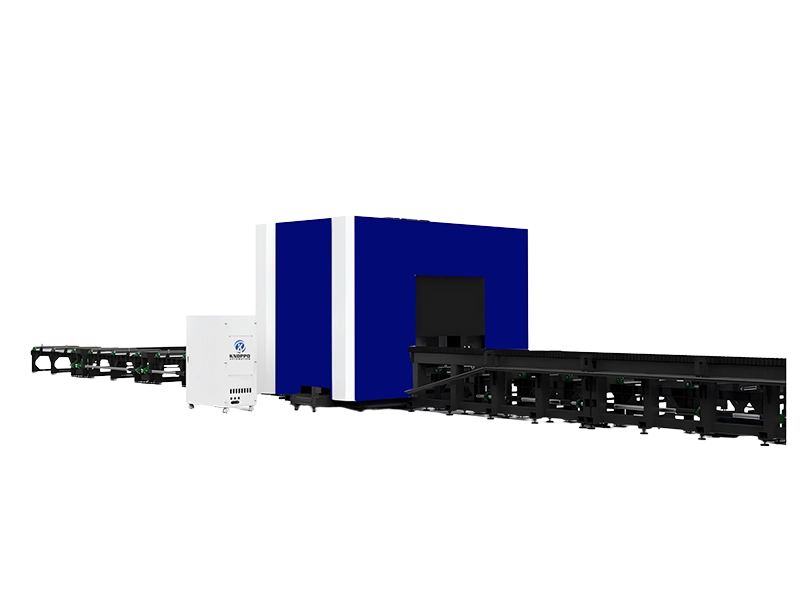

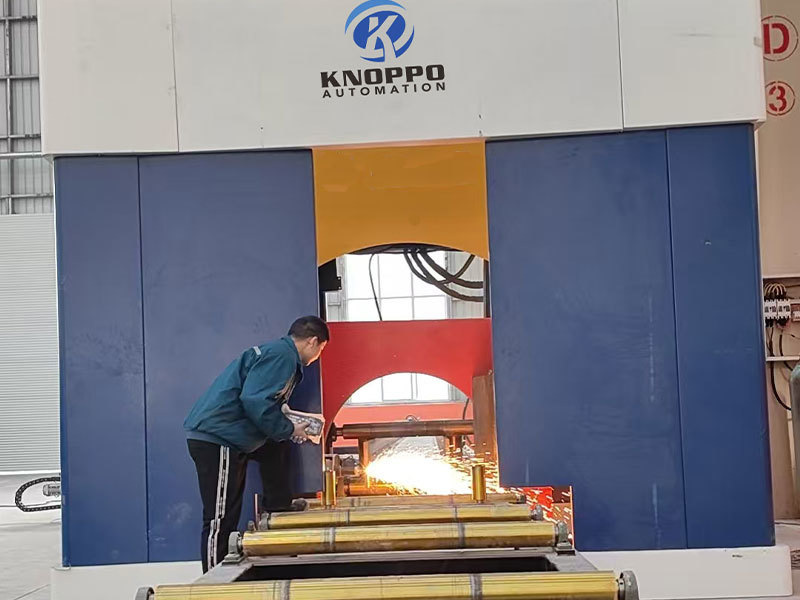

KT12 Rotary Table H Beam Laser Beveling Cutting Machine

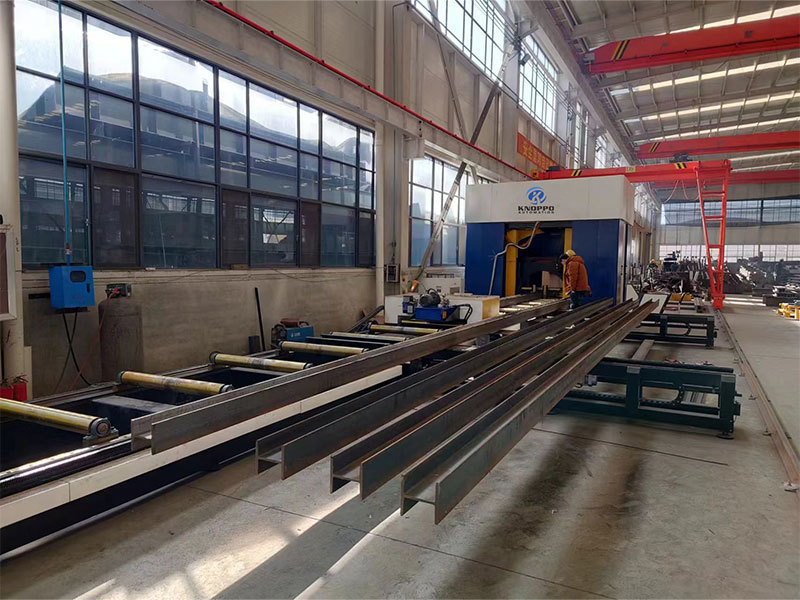

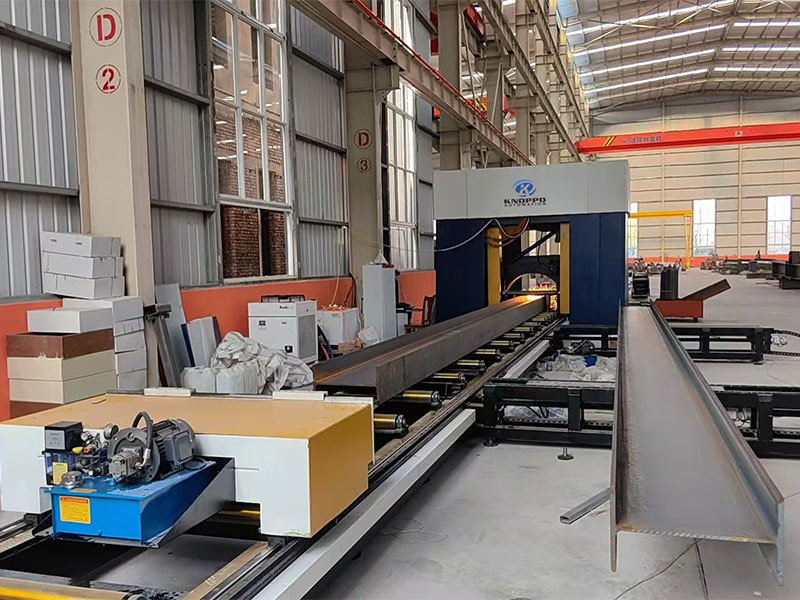

This model can cut H beam , square pipe , round pipe , channel steel and angle steel etc, also can make hole cutting and 45 degree beveling . 500mm , 800mm ,1200mm chuck are available.
Keywords:
Fiber Laser Cutting Machine
 |
Equipment Functions and Applicable Scope: KT12 Rotary Table H Beam Laser Beveling Cutting Machine can cut H beams, square pipes, round pipes, channel steels, angle steels, etc., and is capable of hole cutting and 45-degree beveling. It offers chucks of 500mm, 800mm, and 1200mm specifications with a 3-year warranty. |
 |
Core Features and Advantages: Equipped with intelligent deviation correction and positioning, supporting bevel cutting and volley cutting; compatible with Tekla drawings, enabling quick ungrouping of drawings and automatic generation of processing codes; the rotary table can bear heavy profiles and achieve zero tailing. |
Product Parameters
|
NO. |
parameters |
remarks |
|
|
1 |
Cutting Range |
Chuck Diameter: 900mm / 1200mm |
Maximum round pipe 900mm |
|
H Beam/square tube 600*600mm |
|||
|
H Beam/rectangular tube 800*400mm |
|||
|
Or the diagonal line is less than 900mm |
|||
|
Minimum round tube 100mm |
|||
|
Pipe Tube/H Steel 100*100mm |
|||
|
Minimum Channel Steel: 10# |
|||
|
2 |
Y axis Feeding Travel |
12500mm |
|
|
3 |
X axis left and right Travel |
900mm |
|
|
4 |
Z axis Up and down travel |
600mm |
|
|
5 |
C axis Rotary |
-360°----+360° |
|
|
6 |
Max Bevel Angle |
-45°----+45° |
|
|
7 |
Position Accuracy |
≤±0.25mm |
|
|
8 |
Repositin Accuracy |
≤±0.10mm |
|
|
9 |
Max Moving Speed |
30m/min |
|
|
10 |
Max Loading Weight |
11000KG |
|
|
11 |
Total Power |
82.4KW/154A |
|
|
12 |
Stabilizer |
100KVA |
|
Description:
|
Model |
KT12 |
|
Warranty |
3 Years |
|
Description |
This model can cut H beam , square pipe , round pipe , channel steel and angle steel etc, also can make hole cutting and 45 degree beveling . 500mm , 800mm ,1200mm chuck are available. |
Description details

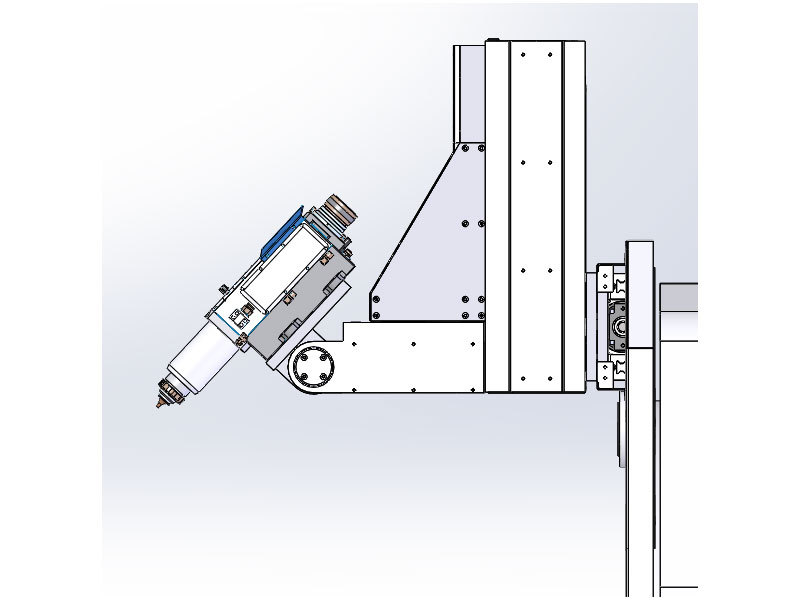

Intelligent Deviation Correction and Positioning, support bevel cutting and volley cutting .

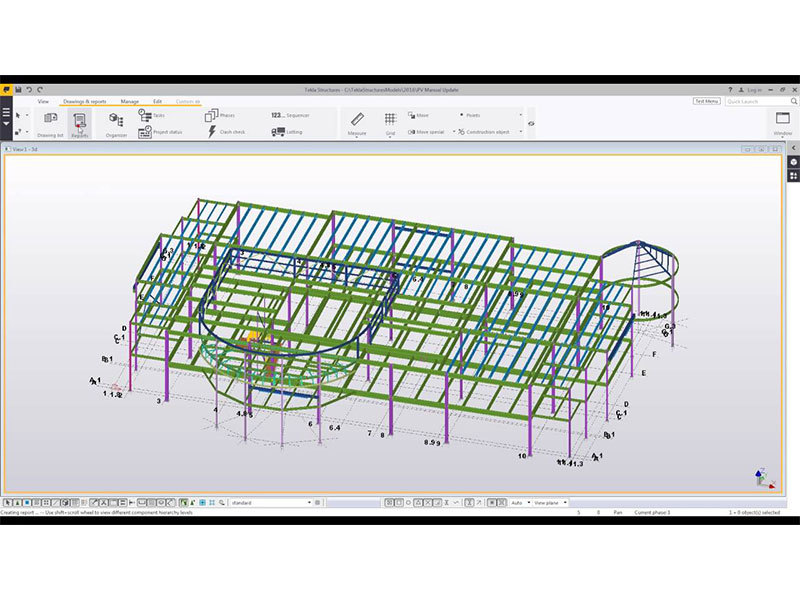

Support Tekla Drawing, quickly ungrouping drawings and automatically generating processing codes .

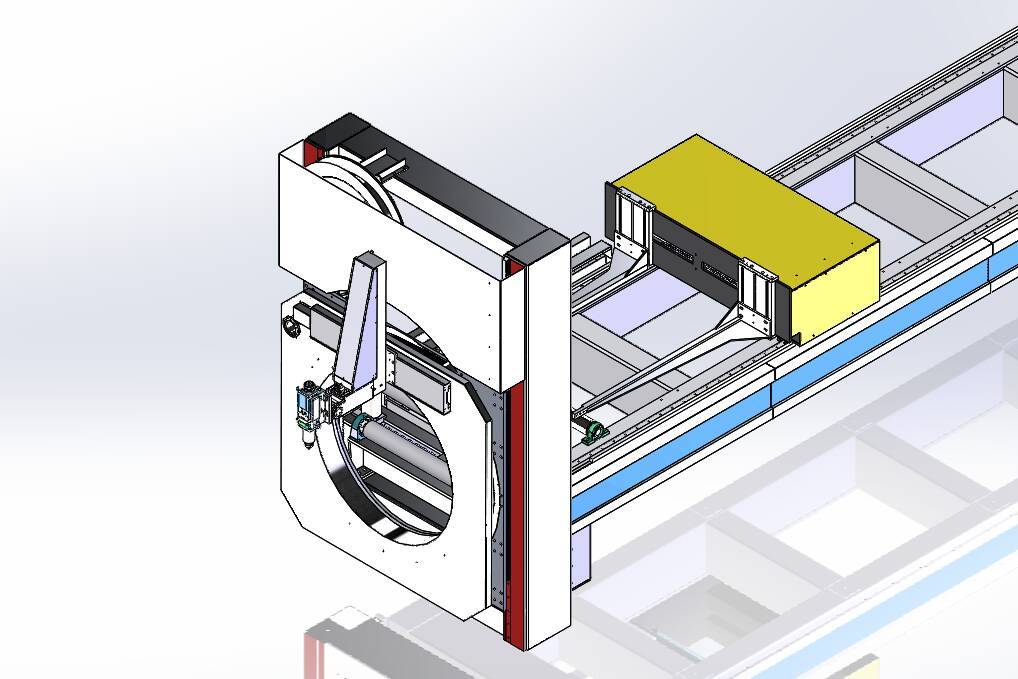

Rotary Table , afford heavy profiles ; zero tailing
