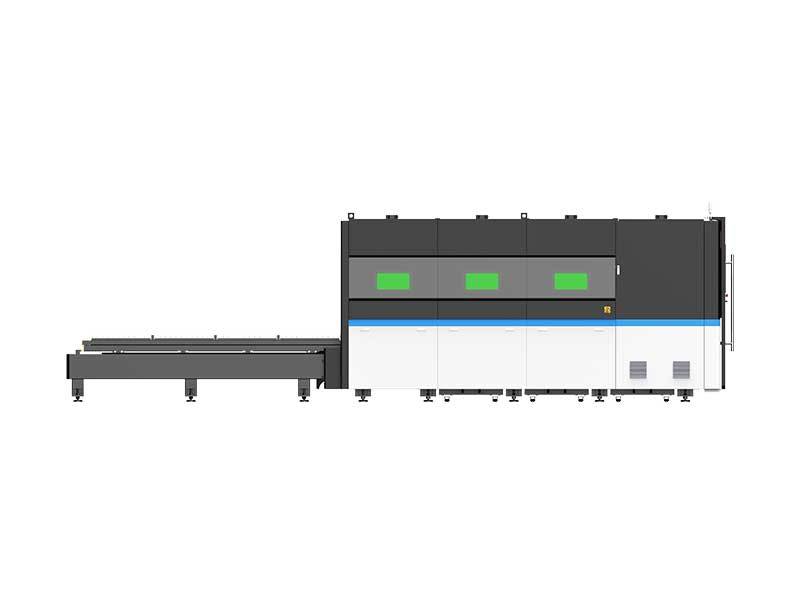

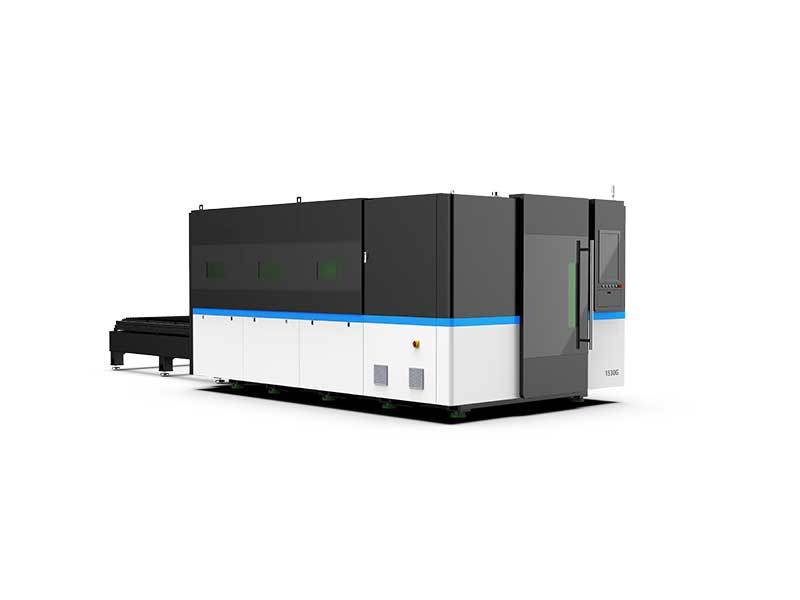

KP Series Full Closed Fiber Laser Cutting Machine
Equipment Features and Safety Advantages: KP Series Full Closed Fiber Laser Cutting Machine (Model KP3015) adopts a laser glass protective cover and a reasonable dust treatment system, which can effectively reduce harm to the human body. Bilateral six-edge sticks realize overall positioning for stronger stability.
Keywords:
Fiber Laser Cutting Machine
 |
Equipment Features and Safety Advantages: KP Series Full Closed Fiber Laser Cutting Machine (Model KP3015) adopts a laser glass protective cover and a reasonable dust treatment system, which can effectively reduce harm to the human body. Bilateral six-edge sticks realize overall positioning for stronger stability. The dual-platform design enables fast switching to improve cutting efficiency. The all-around protective covering isolates laser radiation and pollution, complying with European CE standards. Smoke and dust generated during cutting are automatically collected to ensure a clean operating area, and the smart monitoring system reduces the accident rate. |
 |
BLT Auto Focus Laser Head: Applicable to various focal lengths, controlled by the machine tool control system. The focal point is automatically adjusted during cutting to achieve optimal cutting effects for different thicknesses of metal sheets. It improves cutting accuracy by increasing perforation focus length and separately setting perforation and cutting focal lengths. |
 |
CYPCUT Control System: Enables intelligent layout of graphics cutting, supports import of multiple graphics, automatically optimizes cutting orders, performs smart edge searching and automatic positioning, enhancing sheet metal utilization and simplifying operation. |
 |
Follow-Up Zoned Dedusting System: Real-time monitoring of the cutting position combined with precise and rapid zoned dedusting creates a clean environment. |
 |
Optional Beveling Cutting System and Head: Supports various bevel cutting types including A-type, V-type, etc., enabling one-stop bevel forming to reduce costs. |
Techinical parameters
|
Machine Model |
KP Series |
|
Wavelength |
1070nm |
|
Cutting Area |
3000*1500mm / 4000*2000mm / 6000*2000mm/ 6000*2500mm |
|
Laser Power |
1000W / 1500W / 2000W / 3000W / 4000W / 6000W / 8000W / 12KW / 15KW / 20KW / 30KW |
|
X/Y-axis Positioning Accuracy |
0.03mm |
|
X/Y-axis Repositioning Accuracy |
0.02mm |
|
Max. Acceleration |
1.5G |
|
Max. linkage speed |
140m/min |
Short Description:
Model No.: KP3015
Introduction:
KP3015 full closed fiber laser cutting machine using laser glass protective cover and reasonable dust treatment system can effectively reduce the harm to human body. Bilateral six arris sticks can realize overall positioning, more stable.
Dual platforms, fast switching, higher cutting efficiency.
Application
Applicable Materials Of Fiber Laser Cutting Machine
Fiber laser cutting machine can cut stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate, metal pipe and tube, etc.
Applicable Industries Of Fiber Laser Cutting Machine
Fiber laser cutting machine can be used for many industry. For example , machinery parts, electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields.
Configuration
Double Fast Exchange Tables
The metal body on this cutter has undergone a 600°C heat treatment, and is cooled inside the furnace for 24 hours. After this is complete, it is processed using a plano-milling machine and welded using carbon dioxide. This ensures it has a high strength and a 20 year service life.
Higher Safety Level
The all-around protective covering isolates laser radiation and pollution, offering higher safety level. Smoke and dust produced during cutting will be automatically collected to ensure a clean operating area, suitable for European CE standard. Smart monitoring system helps reduce accident rate.

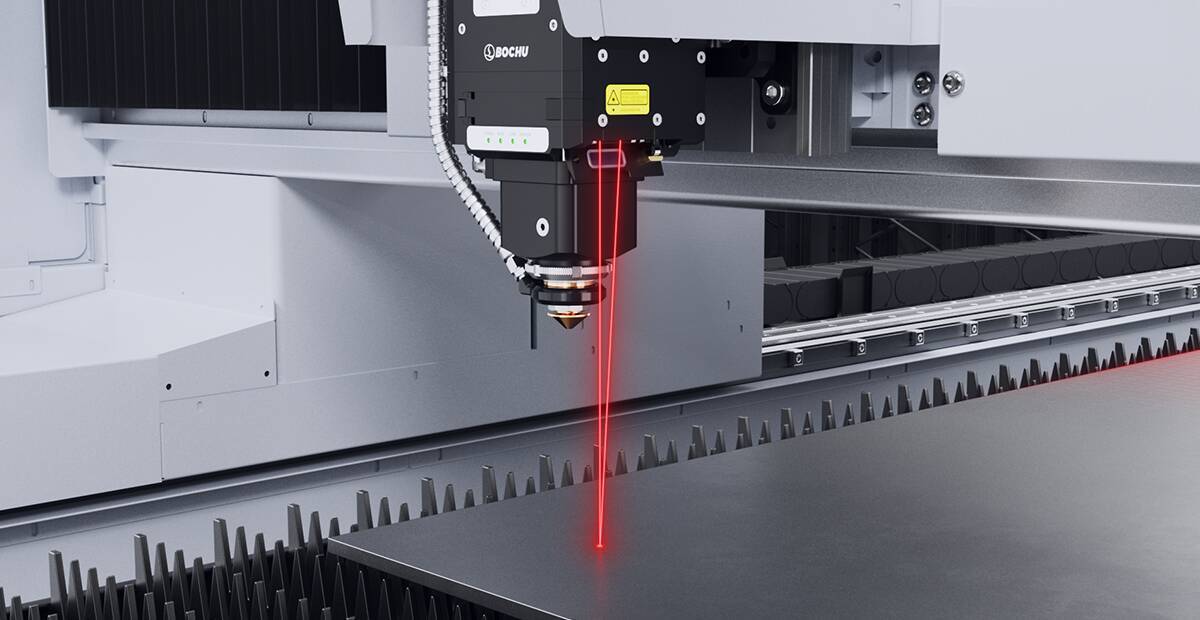

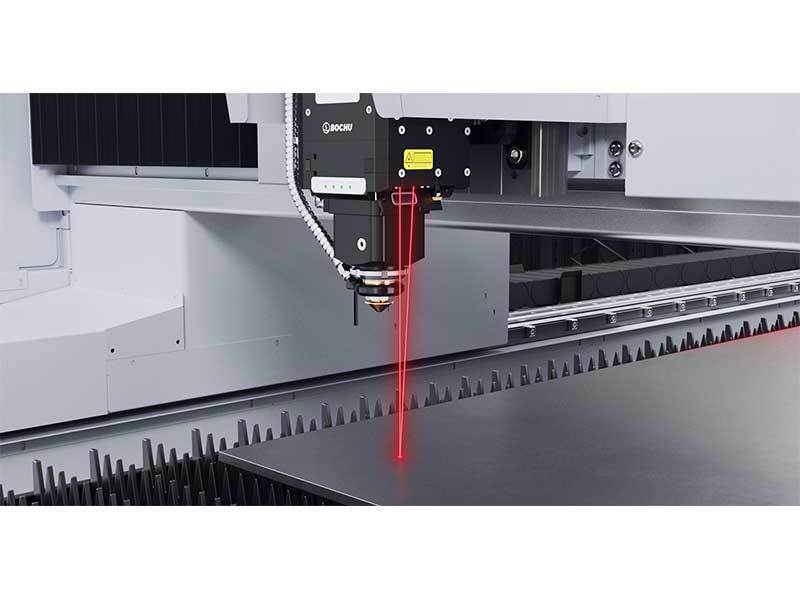

Auto Focus Laser Head
This laser head is applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal. Increasing perforation focus length, separately setting perforation focal length and cutting focal length, improve cutting accuracy.
CYPCUT Control System
CYPCUT Control system of our fiber laser cutting machine can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhancing the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.

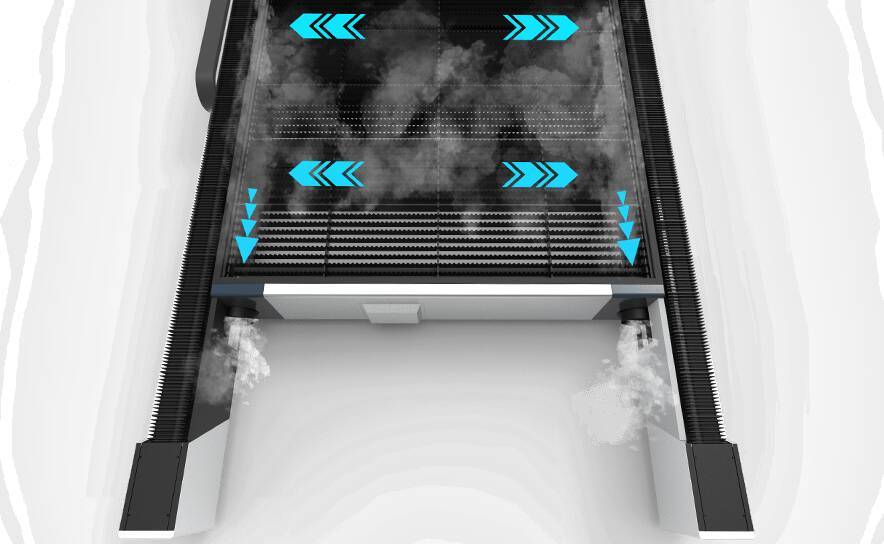

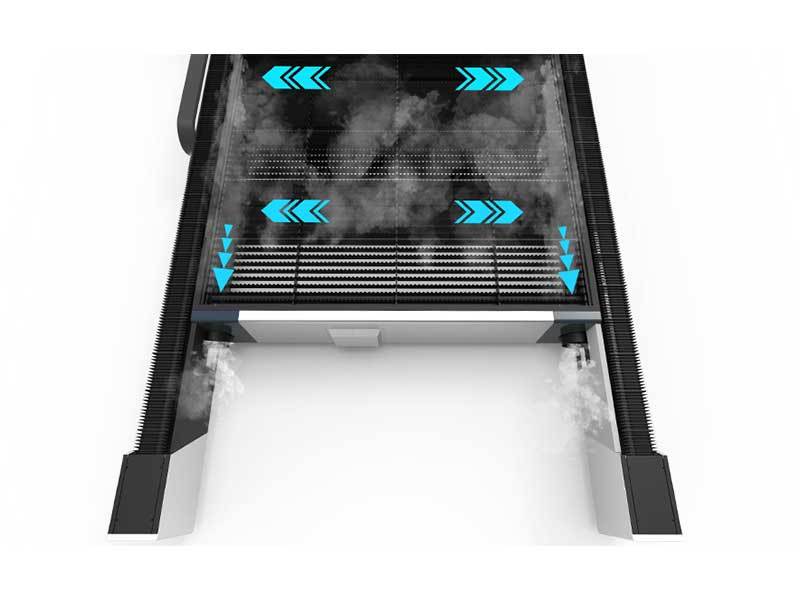

Follow-Up Zoned Dedusting System
With real-time monitoring of the cutting position and combined with precise and rapid zoned dedusting, creat a clean environment for you!

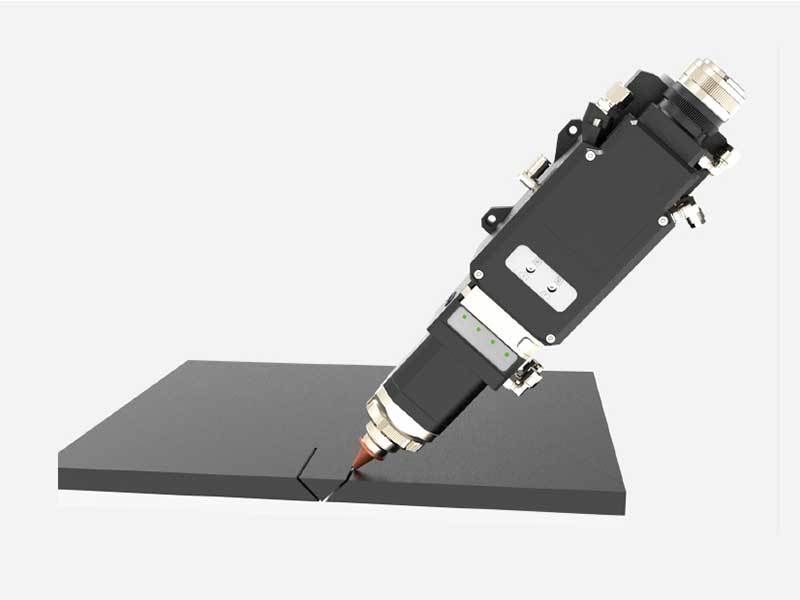

Optional Beveling Cutting System And Head
supports various bevel cutting types, including A-type, V-type, Y-type, X-type, and K-type. One-stop bevel forming reduces costs.
