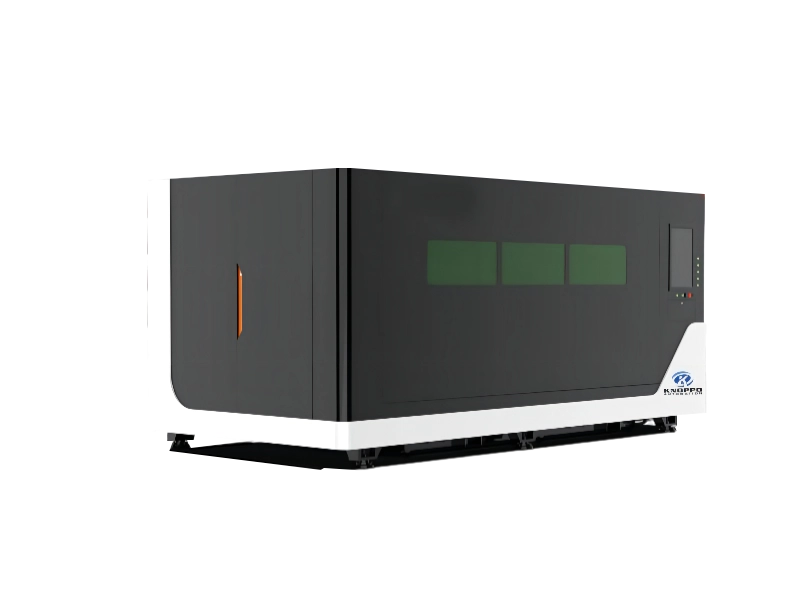

KF3015P Full Covered Single Table Fiber Laser Cutting Machine
KF3015P full covered fiber laser cutting machine meets the parts processing requirements of most industries, working accuracy is stable. Selecting the optimal force and supporting structure, the overall mechanical property of equipment is perfect. Adopting cut- ting-edge optical concept to improve cutting performance. High speed cutting, auxiliary loading and unloading and efficient production reduce labor costs. At present, laser cutting machines have been widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.
Keywords:
Fiber Laser Cutting Machine
 |

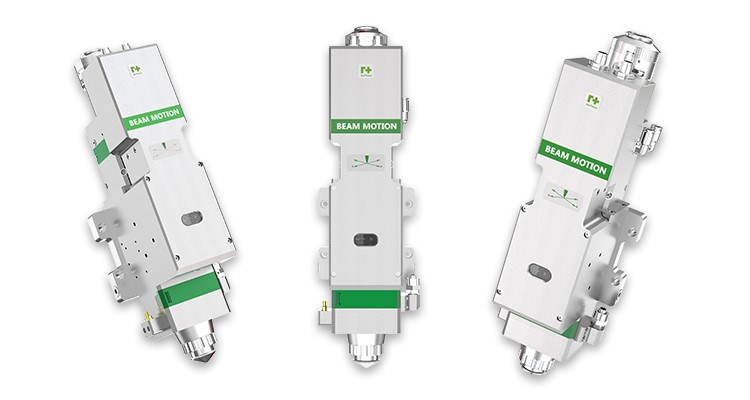

Switzerland Raytools Laser Head: A world-renowned brand with built-in double water-cooling structures to ensure constant temperature of collimating and focusing components, avoid lens overheating, extend lens service life, and the protective lens can effectively protect key components. |
 |
Automatic Up&Down Door and Pull&Out Table: Facilitate loading/unloading of metal sheets and operation. |
 |

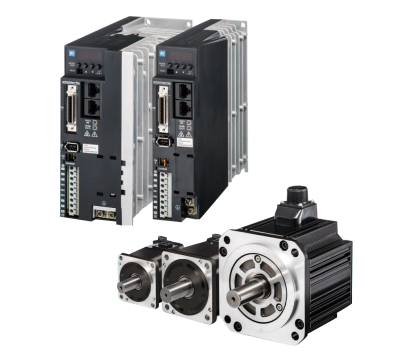

Japan FUJI Servo Driver and Yaskawa Servo Motor: Adopt closed-loop control to ensure accurate positioning and optimal acceleration dynamic response. X, Y, Z axes are driven by high-power motors with acceleration up to 1.5G. |
 |
Multiple Intelligent Systems: Including intelligent travel protection (monitoring the operation range of the crossbeam and cutting parts), automatic lubrication system (providing timing and quantitative lubricating oil with abnormal and liquid level alarms), a new generation of safety following module (avoiding collision between the laser head and workpieces), intelligent alarm system (pushing alarm information when the equipment is abnormal), and auxiliary gas low pressure alarm (real-time pressure detection to ensure cutting effect). |
Techinical Parameters
|
Model |
KF3015P |
|
Laser Power |
1000W/1500W/2000W/3000W/4000W/6000W |
|
Working Area |
3000mm*1500mm |
|

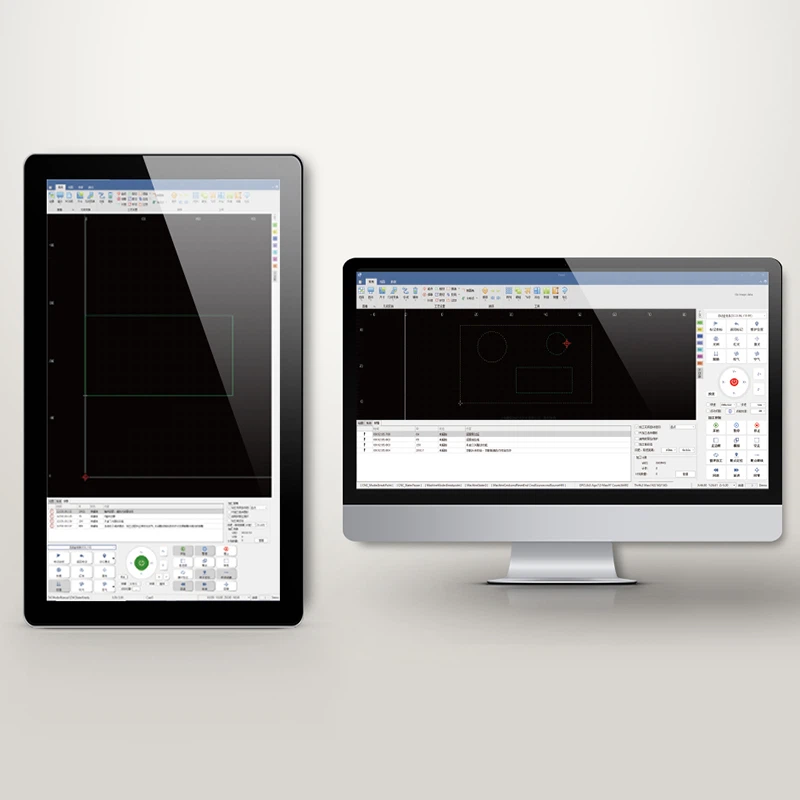

Control System |
CYPCUT |
|
Machine weight |
5000kg |
|
Cooling Type |
Water Chiller |
|
Positioning accuracy |
0.05mm |
|
Repositioning accuracy |
0.03mm |
Introduction:
KF3015P full covered fiber laser cutting machine is small size , single table with 3000*1500mm cutting area , very suitable for small workshop. 1000w , 1500w , 2000w , 3000w , 4000w and 6000w is avaiable . 3 years warranty .
Features
KF3015P full covered fiber laser cutting machine meets the parts processing requirements of most industries, working accuracy is stable. Selecting the optimal force and supporting structure, the overall mechanical property of equipment is perfect. Adopting cut- ting-edge optical concept to improve cutting performance. High speed cutting, auxiliary loading and unloading and efficient production reduce labor costs. At present, laser cutting machines have been widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.
Applicable Materials
Cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other irregular metal.
Applicable Industries
Machinery parts, electrics, steel fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields.

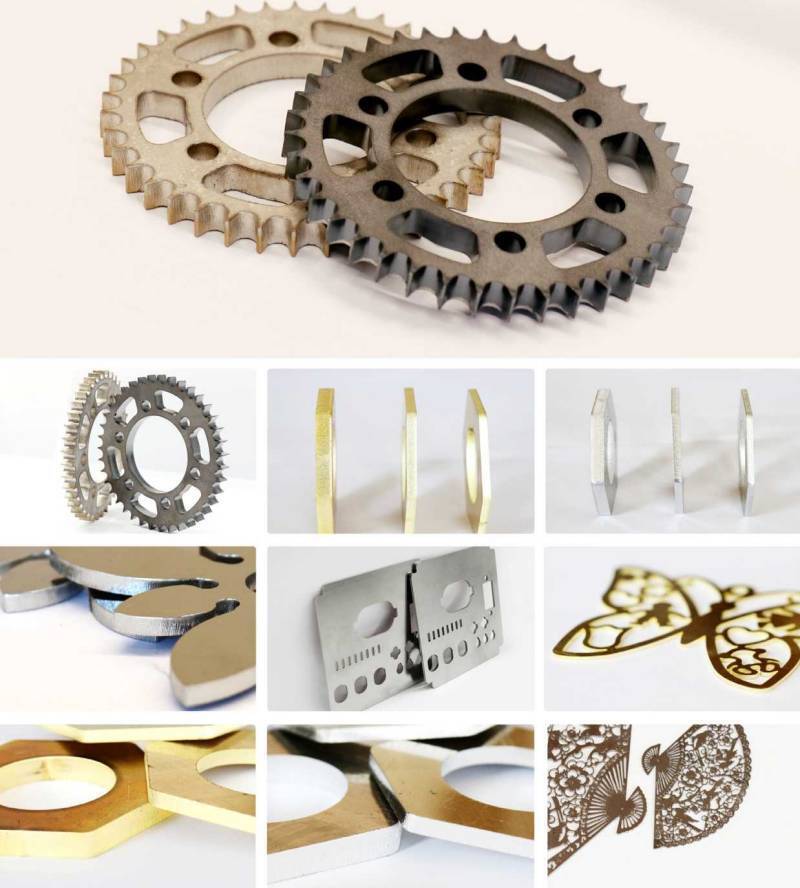

Sample
Auxiliary feeding mechanism
The promotion and demotion of subsidiary roller table reduces friction force between parts and working table, making loading and unloading more convenient.
Intelligent travel protection
Automatically monitor operation range of crossbeam and cutting parts, keeping operation within machining range. Double guarantees of fixed limitation greatly improve equipment and personal safety, minimizing the using risks.
Automatic lubrication system
Automatic lubrication system provides timing and ration lubricating oil for equipment to ensure its normal and high speed operation, and owns functions of abnormal alarm and liquid level alarm. The system greatly enhances cutting accuracy and effectively extends service life of transmission mechanism.
A new generation of safety following module
Laser head keeping distance with work piece in cutting process can reduce collision risks. It will stop cutting when colliding plate. The safety following module reduces accident rate and improves cutting performance.
Intelligent alarm system
The system will start full abnormal alarm and push it to the interface through control center when equipment is abnormal. Finding equipment abnormal in advance and reducing hidden dangers can multiply improve the equipment troubleshooting efficiency.
Auxiliary gas low pressure alarm function
Providing real-time pressure detection, pushing abnormal information when pressure value is lower than optimal cutting effect and precision. Ensure the cutting performance, accuracy and timeliness of gas replacement.
Shipping & Packaging
Exhibition
