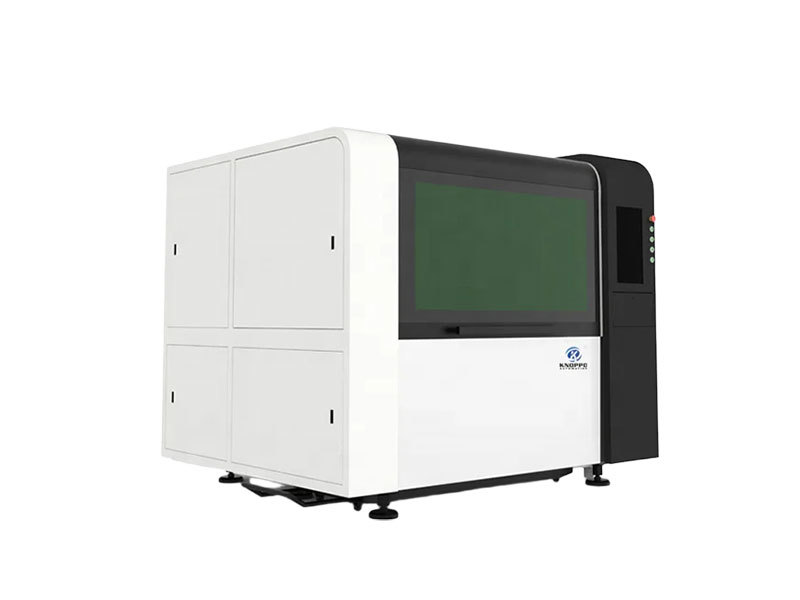

KP1390 Small Size Laser Cutting Machine

KP1390 small sheet metal fiber laser cutter is mainly used for small size metal sheet. 1000W, 1500W, 2000W, 3000W, 4000W is optional. Space structure is effectively used, cutting area is 1300*900mm, 600*600mm or others, saving space and resources, the equipment can be moved flexibly. Strong stability, high precision, 20 years without deformation.

Category:

Fiber Laser Cutting Machine

Email:

info@knoppoauto.com

Inquiry

Keywords:

Fiber Laser Cutting Machine

Equipment Features and Space Advantages:

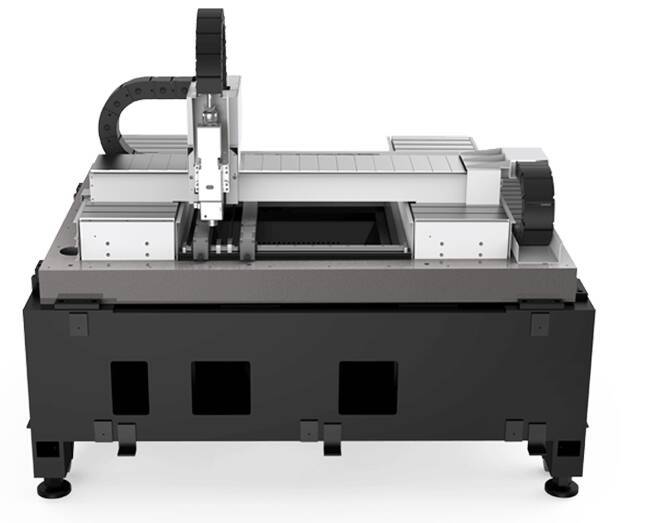

KP1390 small size fiber laser cutting machine is mainly used for small-sized metal sheets. It has optional laser power of 1000W-6000W, with cutting areas of 1300*900mm, 600*600mm or other customized sizes. It effectively utilizes space structure, saving space and resources, and the equipment can be moved flexibly. It features strong stability, high precision, and no deformation for 20 years.

Applicable Materials and Industries:

Capable of cutting various metal sheets such as stainless steel, carbon steel, alloy steel, galvanized steel, titanium sheets, aluminum, copper, brass, etc. It is applicable to industries including machinery parts, electrical cabinets, kitchenware, elevator panels, hardware tools, jewelry, medical instruments, automotive parts and other metal cutting fields.

Key Components:

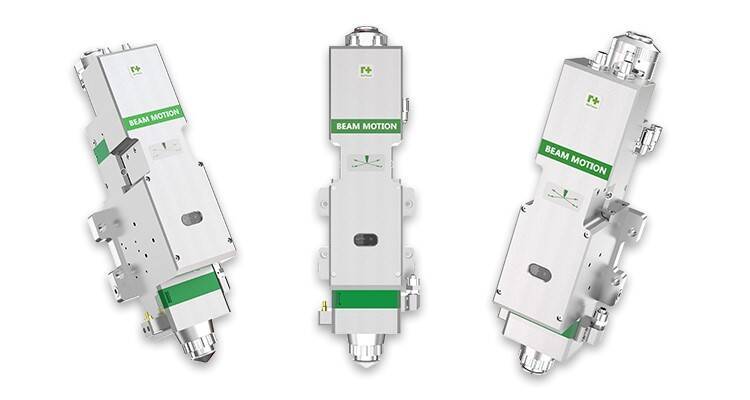

Adopts precision Switzerland Raytools laser head (the world's No.1 brand), Taiwan ball screw drive guide rail system, Japanese Fuji servo motor driver, Taiwan Hiwin guide rails, German Schneider electronics parts. The laser source has a lifespan of 100,000 hours.

Techinical parameters

Model	KP1390
Wavelength	1070nm
Cutting Area	600600mm, 1300900mm And other customized size.
Laser Power	1000W / 1500W / 2000W / 3000W / 4000W
X/Y-axis Positioning Accurac	0.03mm
X/Y-axis Repositioning Accuracy	0.02mm
Max. Acceleration	1.5G
Max. linkage speed	140m/min

Introduction:

Application

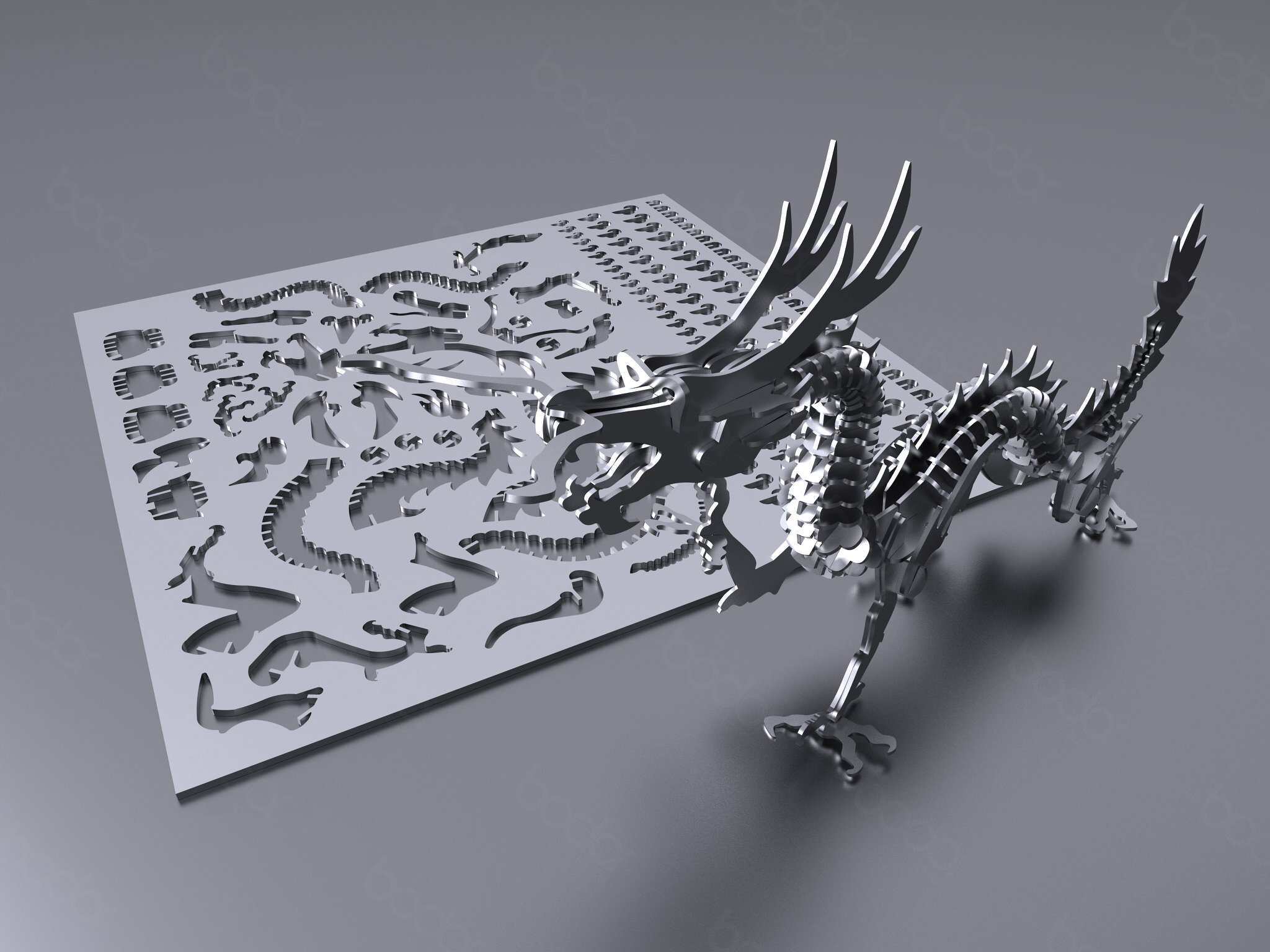

Applicable Materials Of Small Sheet Metal Fiber Laser Cutter

Small sheet metal fiber laser cutter can cut stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate.

Applicable Industries Of Small Sheet Metal Fiber Laser Cutter

Small sheet metal fiber laser cutter is used for industry of machinery parts, electrics, electrical cabinet, kitchenware, elevator panel , hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts, metal jewelry and other metal cutting fields.

Configuration

Under table extraction fan.	Japanese Fuji servo motor driver.
Positioning and re-positioning accuracy is 0.02mm.	Taiwan Hiwin guide rails.
laser source in 1KW, 1.5KW , 2KW , 3KW , 4KW – Lifespan 100,000 hours.	German Schneider Electronics Parts.
Precision Switzerland Raytools laser head , NO.1 brand on the world.	CypCut software including nesting capability – stable and efficient productivity.
Ball screw drive guide rail system from Taiwan.	Water chiller and extraction system included.

Cutting parameters

Cutting Parameters		1000W	1500W	2000W	3000W	4000W
Material	Thickness	speed m/min	speed m/min	speed m/min	speed m/min	speed m/min
Carbon steel	1	8.0--10	15--26	24--32	30--40	33--43
	2	4.0--6.5	4.5--6.5	4.7--6.5	4.8--7.5	15--25
	3	2.4--3.0	2.6--4.0	3.0--4.8	3.3--5.0	7.0--12
	4	2.0--2.4	2.5--3.0	2.8--3.5	3.0--4.2	3.0--4.0
	5	1.5--2.0	2.0--2.5	2.2--3.0	2.6--3.5	2.7--3.6
	6	1.4--1.6	1.6--2.2	1.8--2.6	2.3--3.2	2.5--3.4
	8	0.8--1.2	1.0--1.4	1.2--1.8	1.8--2.6	2.0--3.0
	10	0.6--1.0	0.8--1.1	1.1--1.3	1.2--2.0	1.5--2.4
	12	0.5--0.8	0.7--1.0	0.9--1.2	1.0--1.6	1.2--1.8
	14		0.5--0.7	0.8--1.0	0.9--1.4	0.9--1.2
	16			0.6-0.8	0.7--1.0	0.8--1.0
	18			0.5--0.7	0.6--0.8	0.6--0.9
	20				0.5--0.8	0.5--0.8
	22				0.3--0.7	0.4--0.8
Stainless steel	1	18--25	20--27	24--50	30--35	32--45
	2	5--7.5	8.0--12	9.0--15	13--21	16--28
	3	1.8--2.5	3.0--5.0	4.8--7.5	6.0--10	7.0--15
	4	1.2--1.3	1.5--2.4	3.2--4.5	4.0--6.0	5.0--8.0
	5	0.6--0.7	0.7--1.3	2.0-2.8	3.0--5.0	3.5--5.0
	6		0.7--1.0	1.2-2.0	2.0--4.0	2.5--4.5
	8			0.7-1.0	1.5--2.0	1.2--2.0
	10				0.6--0.8	0.8--1.2
	12				0.4--0.6	0.5--0.8
	14					0.4--0.6
Aluminum	1	6.0--10	10--20	20--30	25--38	35--45
	2	2.8--3.6	5.0--7.0	10--15	10--18	13--24
	3	0.7--1.5	2.0--4.0	5.0--7.0	6.5--8.0	7.0--13
	4		1.0--1.5	3.5--5.0	3.5--5.0	4.0--5.5
	5		0.7--1.0	1.8--2.5	2.5--3.5	3.0--4.5
	6			1.0--1.5	1.5--2.5	2.0--3.5
	8			0.6--0.8	0.7--1.0	0.9--1.6
	10				0.4--0.7	0.6--1.2
	12				0.3-0.45	0.4--0.6
	16					0.3--0.4
Brass	1	6.0--10	8.0--13	12--18	20--35	25--35
	2	2.8--3.6	3.0--4.5	6.0--8.5	6.0--10	8.0--12
	3	0.5--1.0	1.5--2.5	2.5--4.0	4.0--6.0	5.0--8.0
	4		1.0--1.6	1.5--2.0	3.0-5.0	3.2--5.5
	5		0.5--0.7	0.9--1.2	1.5--2.0	2.0--3.0
	6			0.4--0.9	1.0--1.8	1.4--2.0
	8				0.5--0.7	0.7--1.2
	10					0.2--0.5
