KW-M 3 IN 1 Handheld Laser Welding Machine

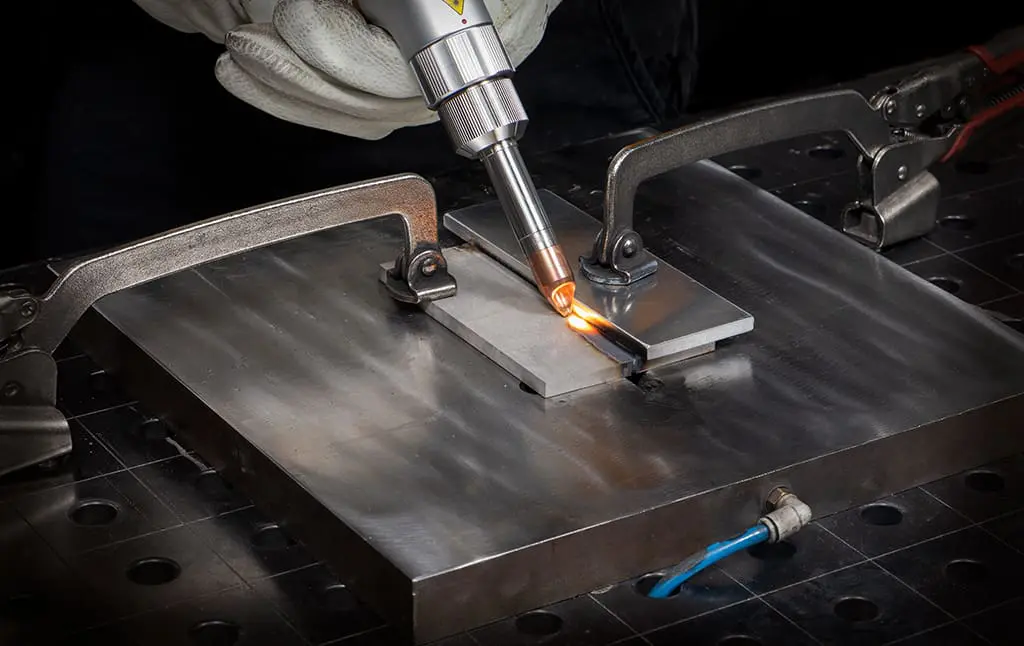

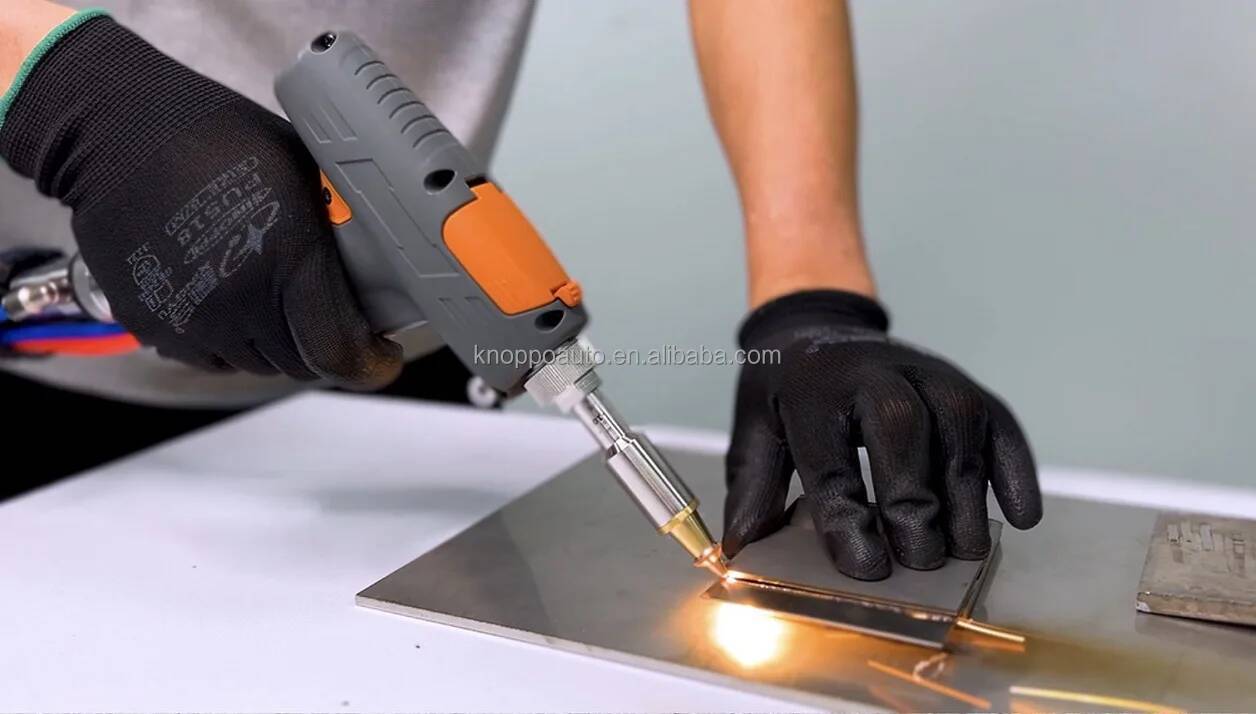

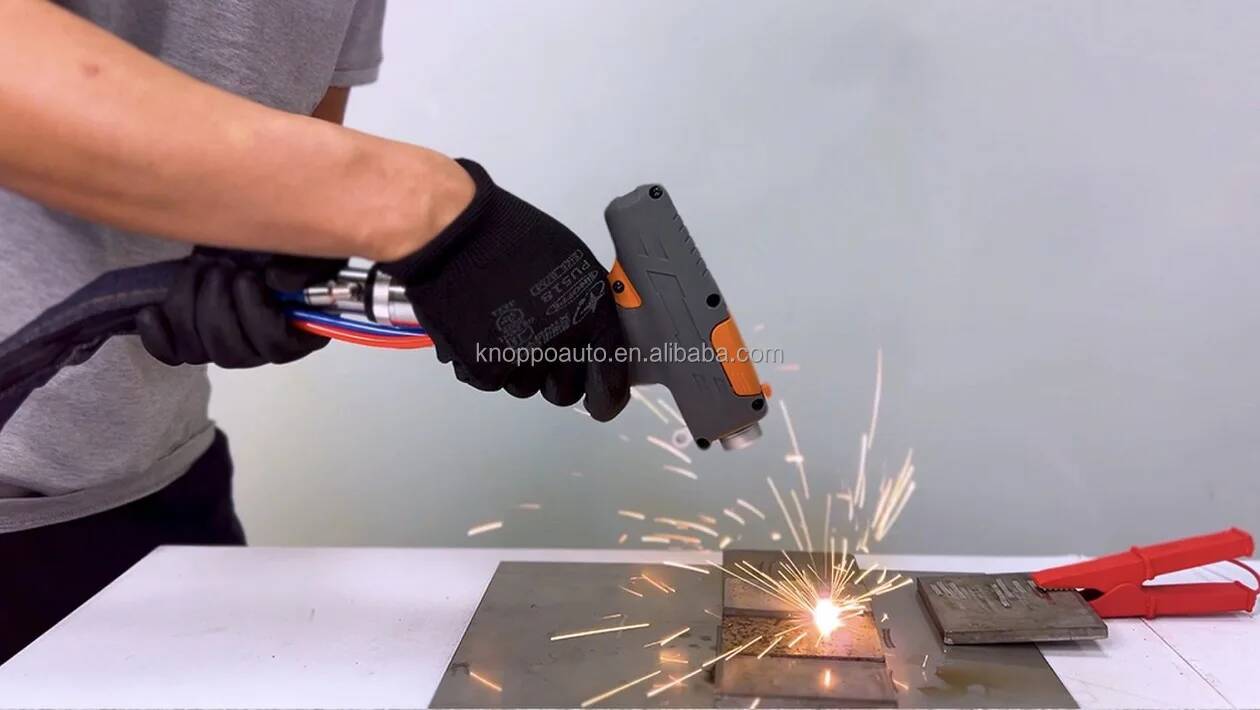

KW-M handheld fiber laser welding machine coupled high energy laser beam into fiber cable, after long distance transmission, it is focusing on the work piece for welding by collimating lens collimate light. It adopts Germany technology, the overall appearance is good looking appearance, equipped with high performance bearing working table, handheld type, simple operation and high cost ratio and good performance .With high efficiency and energy, 100,000 hours lifetime, stable performance, high power, it is applicable and flexible for all kinds of laser industry.
Keywords:
Laser Welding Machine
 |
Core Technology and Design Features : Adopts German technology, coupling high-energy laser beams into fiber cables, which are transmitted over long distances and then focused on workpieces for welding via collimating lenses. It features a handheld design with a high-performance bearing workbench, simple operation, and high cost performance. The laser source has a lifespan of 100,000 hours, with stable performance and high power, suitable for various laser processing scenarios. |
 |

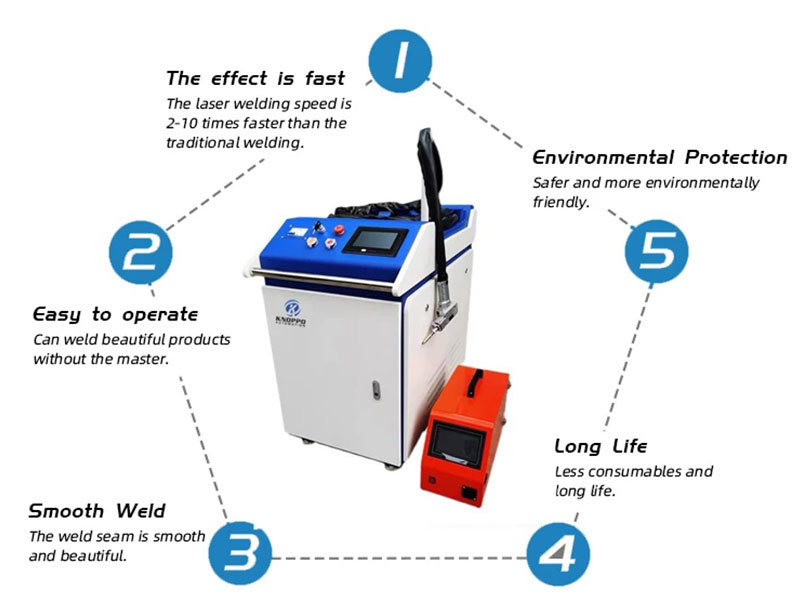

Efficient and Practical Performance Advantages: Welding speed is 2-10 times that of traditional welding, with high efficiency; easy to operate, enabling beautiful welding results even without professional masters; smooth and aesthetic weld seams; safer and more environmentally friendly, with fewer consumables and long service life. |
Wide Industry Applications and 3 Functions:
Applicable to numerous industries such as sheet metal processing, railway transportation, automobile manufacturing, construction machinery, agricultural and forestry machinery, electrical appliance manufacturing, elevator manufacturing, home appliances, food machinery, etc., and can also provide laser external processing services.
 |
 |
 |
Technical parameters
|
No. |
Model |
|
||
|
I.Laser source |
Raycus / MAX |
|||
|
1. |
Output Power (w) |
1500W 2000W 3000W 6000W |
||
|
2. |
Center wavelength |
1080nm ±5 |
||
|
3. |
Fiber Cable length |
10m |
||
|
II.Water Cooling |
1.5P 2P 3P 6P |
|||
|
III.Laser head |
||||
|
1 |
Spot size (mm) |
1.5/1.8/2.0 (XINGHONG) |
||
|
0.2-5mm adjustable |
||||
|
2 |
Working Mode |
dot/line/circle |
||
|
3 |
Protective lens |
D20*2 |
||
|
4 |

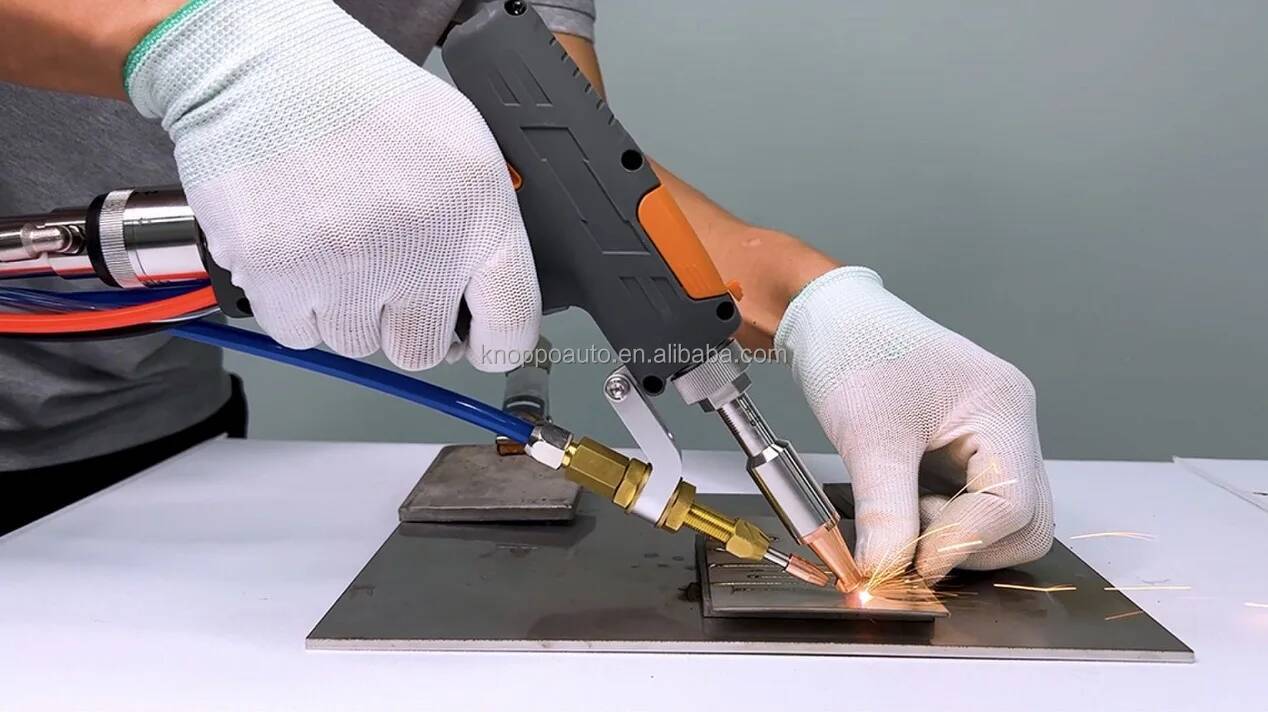

Auto Wire-feeding |
Standard |
||
|
IV. Gas |
N2/Ar |
|||
|
V.Total Power Consumption |
7.5KW |
8.5KW |
||
|
VI.Voltage |
220±20% VAC 50/60Hz |
380±20% V AC 50/60Hz |
||
|
VII.Dimension (CM) |
62.5*174.6*109 |
62.5*175.6*124 |
||
Introduction:
KW-M handheld fiber laser welding machine coupled high energy laser beam into fiber cable, after long distance transmission, it is focusing on the work piece for welding by collimating lens collimate light. It adopts Germany technology, the overall appearance is good looking appearance, equipped with high performance bearing working table, handheld type, simple operation and high cost ratio and good performance .With high efficiency and energy, 100,000 hours lifetime, stable performance, high power, it is applicable and flexible for all kinds of laser industry.
Parameters small adjustments, choose different wave type for welding different materials, single and quick operation.

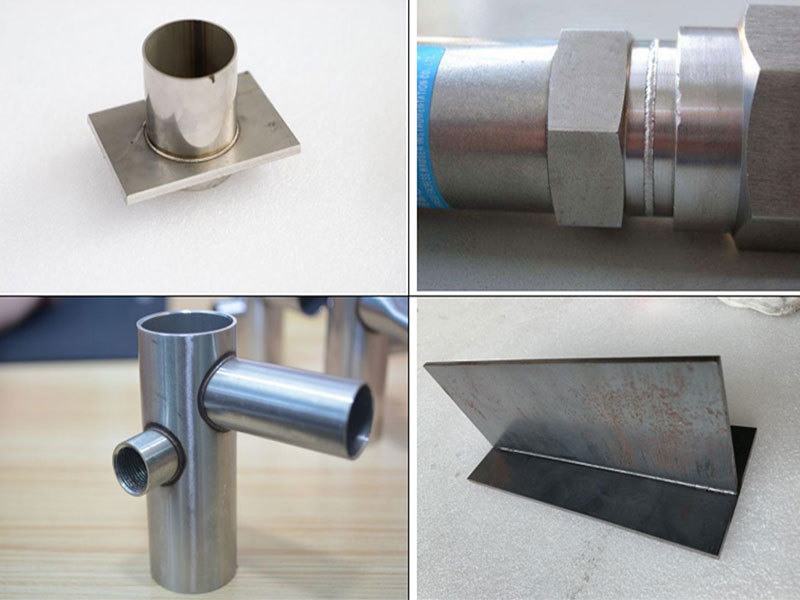

Application
Sheet metal processing、 Railway transportation、 Automobiles、 Construction machinery、 Agricultural and forestry machinery、 Electrical manufacturing、 Elevator manufacturing、 Household appliances、Food machinery、 Textile machinery、 Tools Processing、 Petroleum machinery、 Food machinery、 Kitchen and bathroom、 Decorative advertising、 Laser external processing service
