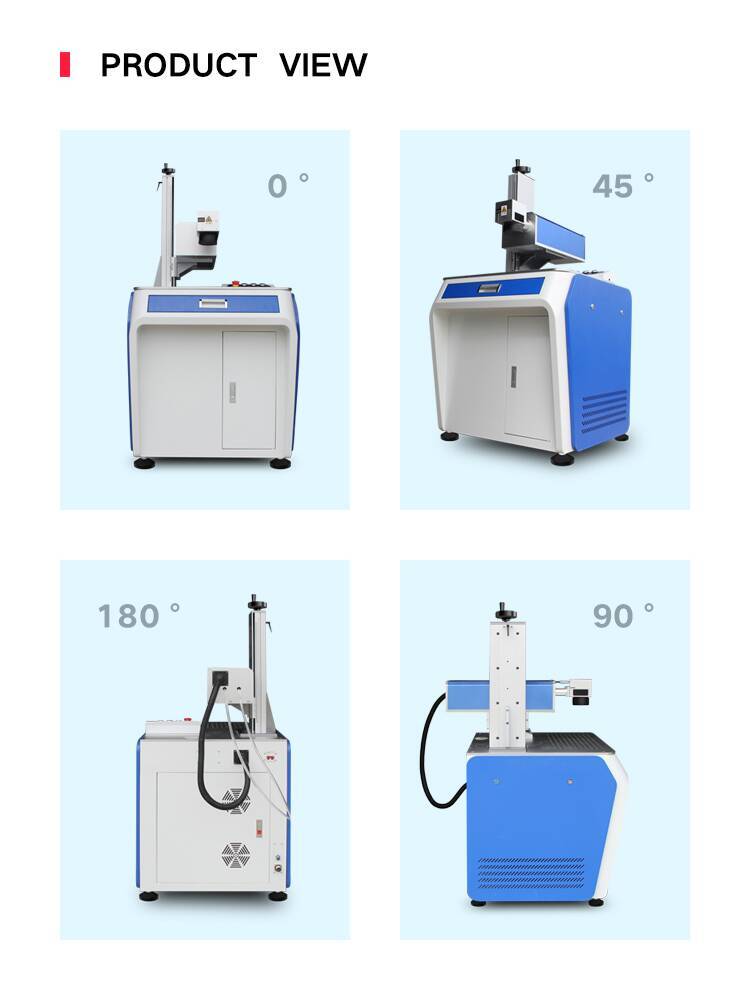

KML-UT UV Laser Marking Machine

UV laser marking machine is mainly based on its unique low-power laser beam, which is especially suitable for high precision processing market . For example , The surface of the packaging bottles of cosmetics, medicine, food and other polymer materials , it is marked with fine effect and clear and firm marking. Better than ink coding and no pollution; flexible pcb board marking and dicing; silicon wafer micro-hole and blind-hole processing; QR code marking on LCD liquid crystal glass , metal surface coating marking, Plastic buttons, electronic components, gifts etc .

Category:

Laser Marking Machine

Email:

info@knoppoauto.com

Inquiry

Keywords:

Laser Marking Machine

Introduction:

	High-Precision Cold Processing Advantages: Uses a 355nm wavelength UV laser, working in a "cold marking" mode. The focused beam diameter is only 20μm, and the pulse energy contacts the material for a short time (microsecond level), resulting in an extremely small heat-affected zone with no thermal damage. It is especially suitable for processing heat-sensitive materials such as electronic components.

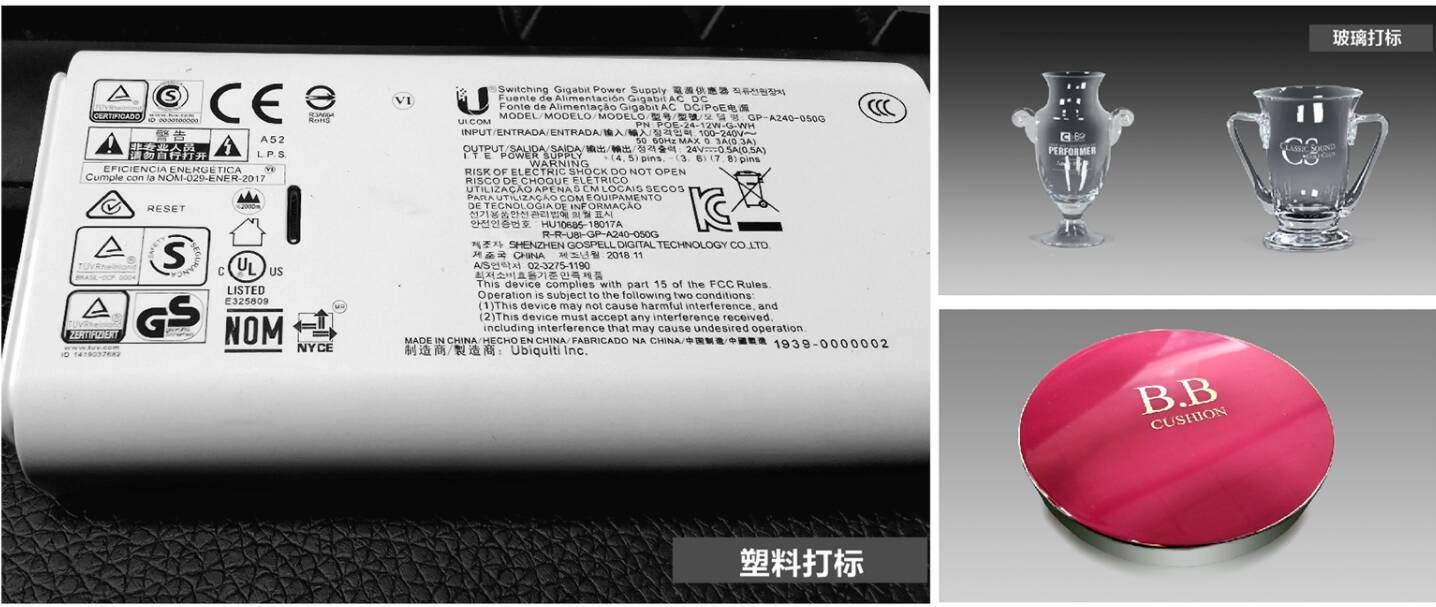

	Wide Material Adaptability and Fine Marking Capability: Applicable to various materials including plastics (PP, PC, PE, etc.), silicon, glass, ceramics, etc. It can achieve ultra-fine marking, such as clear identification on cosmetics/medicine/food packaging bottles, marking and cutting of flexible PCB boards, micro-hole processing of silicon wafers, QR code marking on LCD glass, etc. The effect is better than ink coding and pollution-free.
	Efficient and Stable Performance: Features fast marking speed, high precision, with a repetition accuracy of 3μm and beam quality M²＜1.2. The whole machine has stable performance, supports long-term operation, no consumables, and low maintenance costs.
	Standard Configuration and Reliable Guarantee: Adopts a water-cooling system, operates on WINDOWS 10, has a laser safety level of Class I, and adapts to a power supply range of 110-230V. It comes with a 3-year warranty and complies with relevant safety standards.

Techinical Parameters

Laser Type	UV Laser
Wavelength	355nm
Min Beam Diameter	< 10 µm
Beam Quality M2	< 1.2
Pulse Frequency	10 - 200 kHz
Laser Power	3W 5W 10W
Repetition Accuracy	3 μm
Cooling System	Water-cooled
Marking Field Size	3.93" x 3.93 (100mm x 100mm)

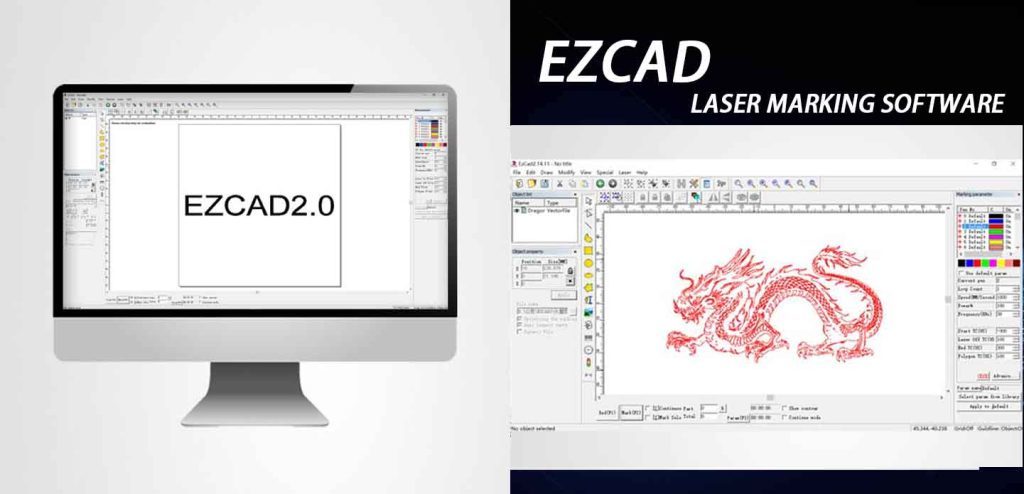

Operation System	WINDOWS 10
Laser Safety Level	Class I
Electrical Connection	110 - 230 V (± 10%) 15 A, 50/60 Hz
Power Consumed	≤1500W
Dimensions	31.96" x 33.97" x 67.99" (812mm x 863mm x 1727mm)
Weight (unpacked)	980 lbs (445kg)
Warranty Coverage (Parts & Labor)	3-year
Running Temperature	15℃-35℃ / 59°-95°F
