KCL-X CO2 Laser Cutting Engraving Machine
KCL-X CO2 laser cutter can cut metal , iron , carbon steel , stainless steel , acrylic, wood, MDF, plywood, leather, cloth and PVC plastic etc, also can engrave on glass, acrylic, wood and other nonmetal.
Keywords:
CO2 Laser Cutting Machine
Introduction:
KCL-X CO2 laser cutter can cut metal , iron , carbon steel , stainless steel , acrylic, wood, MDF, plywood, leather, cloth and PVC plastic etc, also can engrave on glass, acrylic, wood and other nonmetal.
 |
Multi-Material Compatible Cutting and Engraving: Capable of cutting metals (iron, carbon steel, stainless steel, etc.) and nonmetals (acrylic, wood, leather, fabric, PVC plastic, etc.), as well as engraving on materials like glass, acrylic, and wood. It is suitable for industries such as mold making, advertising, decoration, arts and crafts, electronics, and electrical appliances. |
 |
High Precision and Efficient Processing Performance: Features positioning accuracy of ≤0.05mm, maximum scanning precision of 4000DPI, cutting speed of 0-40000mm/min, and engraving speed of 0-60000mm/min. Equipped with red light positioning function for accurate tracking and part placement, ensuring processing precision and efficiency. |
 |
Convenient Operation and Wide Compatibility: Supports Wifi control, compatible with various software like Illustrator, Photoshop, and Coreldraw, and can handle multiple graphic formats such as DST, PLT, and BMP. It has a user-friendly interface and fast cutting function for simple operation, and supports sheet feeding through the back and front for continuous processing. |
 |
Durable Structure and Reliable Guarantee: Adopts a sturdy chassis welded with square steel tubes, equipped with high-precision Taiwanese 3-phase stepper motors, Japanese Omron electronic components, and RECI laser tubes (with a lifespan of up to 10,000 hours), with a 3-year warranty. It also has safety designs such as a "Big Eye" transparent observation window, door sensor safety interlock, and key-lock doors. |
Parameters
|
Model |
KCL-X |
|
Laser Power |
80W 100W 150W 180W 260W 300W |
|
Working Area |
900*600mm 1300*900mm 1600*1000mm |
|
Laser Type |
RECI CO2 Sealed Laser Tube ,10.6um |
|
Cooling Type |
Water Cooling |
|
Engraving Speed |
0-60000mm/min |
|
Cutting Speed |
0-40000mm/min |
|
Laser Output Control |
0-100% set by software |
|
Min. Engraving Size |
1.0mm*1.0mm |
|
Highest Scanning Precision |
4000DPI |
|
Locating Accuracy |
<= 0.05mm |
|
Controlling Software |

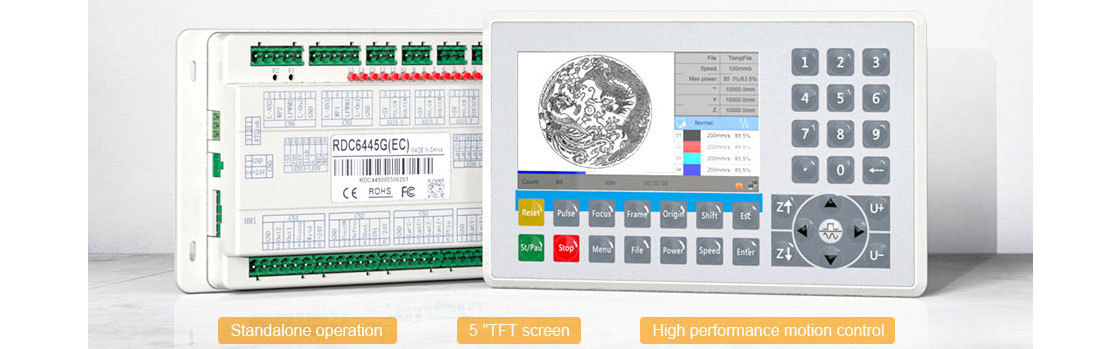

Ruida Control System |
|
Graphic Format Supported |
DST ,PLT, BMP ,DXF, DWG, AI ,LAS etc |
|
Compatible Software |
Illustrator , Photoshop , Coreldraw , Austocad , Solidworks etc |
|
Colour Separation |
Yes |
|
Drive System |
High precision 3-phase stepper motor |
|
Auxillary Equipment |
Exhaust Fan and Air Exhaust Pipe |
|
Power Supply |
AC 220V+10% , 50HZ |
|
Working Environment |
Temperature: 0~45C , Humidity :5~95% ( No Condensate Water ) |
Applicable Industry Of CO2 Laser Cutting Engraving Machine
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising signs, decoration, arts and crafts, electronics, electric appliances, etc.
Materials such as acrylic, wood planks(light planks, candlenut wood), bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, metal , carbon steel , stainless steel , iron etc.
