KCL1325XM Metal And Nonmetal CO2 Laser Cutting Machine
KCL1325XM metal and nonmetal CO2 laser cutting machine have different power, 150W can cut max1.5mm carbon steel and iron, 1.2mm stainless steel, 20mm acrylic and 12mm wood etc, also can engrave on glass, acrylic, wood and other nonmetal; 300W can cut max 3mm carbon steel and iron, 2mm stainless steel, 30mm acrylic and 20mm wood, MDF etc, also can engrave on non-metal.
Keywords:
CO2 Laser Cutting Machine
Introduction:
KCL1325XM metal and nonmetal CO2 laser cutting machine have different power, 150W can cut max1.5mm carbon steel and iron, 1.2mm stainless steel, 20mm acrylic and 12mm wood etc, also can engrave on glass, acrylic, wood and other nonmetal; 300W can cut max 3mm carbon steel and iron, 2mm stainless steel, 30mm acrylic and 20mm wood, MDF etc, also can engrave on non-metal.
 |
Compatible with Metal and Nonmetal Cutting Head: Supports multiple powers such as 150W and 300W, capable of cutting metals like carbon steel and stainless steel (150W cuts up to 1.5mm carbon steel, 300W up to 3mm carbon steel), as well as nonmetals like acrylic and wood (150W cuts 20mm acrylic, 300W 30mm acrylic), and can also engrave on materials like glass and wood. |
 |
High Precision and Efficient Processing Rails : Features positioning accuracy of ≤0.05mm, maximum scanning precision of 4000DPI, cutting speed of 0-40000mm/min, and engraving speed of 0-60000mm/min, ensuring fine processing and efficient production. |
 |

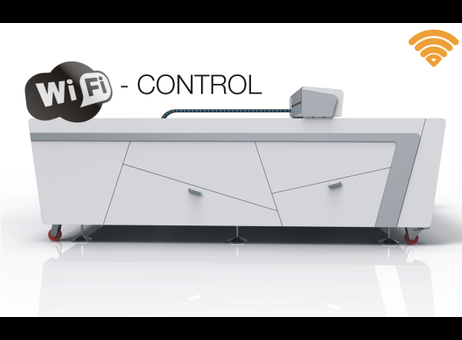

Flexible and Convenient Operation and Adaptability: Supports Wifi control, compatible with various software such as Illustrator and Coreldraw, can process multiple graphic formats like DST and PLT, and is equipped with a user-friendly control panel and fast cutting function. |
 |
Sturdy and Durable Structure with Reliable Configuration: The machine body undergoes 650℃ heat treatment, adopts Taiwanese stepper motors, Japanese Omron electronic components, and RECI laser tubes (with a lifespan of up to 10,000 hours), with a 3-year warranty. |
Prameters
|
Model |
KCL-XM |
|
Laser Power |
150W 180W 260W 300W |
|
Working Area |
1300*2500mm / 1600*3000mm |
|
Laser Type |
CO2 Sealed Laser Tube ,10.6um |
|
Cooling Type |
Water Cooling |
|
Engraving Speed |
0-60000mm/min |
|
Cutting Speed |
0-40000mm/min |
|
Laser Output Control |
0-100% set by software |
|
Min. Engraving Size |
1.0mm*1.0mm |
|
Highest Scanning Precision |
4000DPI |
|
Locating Accuracy |
<= 0.05mm |
|
Controlling Software |
Ruida Control System |
|
Graphic Format Supported |
DST ,PLT, BMP ,DXF, DWG, AI ,LAS etc |
|
Compatible Software |
Illustrator , Photoshop , Coreldraw , Austocad , Solidworks etc |
|
Colour Separation |
Yes |
|
Drive System |
High precision 3-phase stepper motor |
|
Auxillary Equipment |
Exhaust Fan and Air Exhaust Pipe |
|
Power Supply |
AC 220V+10% , 50HZ |
|
Working Environment |
Temperature: 0~45C , Humidity :5~95% ( No Condensate Water ) |
Application
Applicable Industry Of Metal Nonmetal CO2 Laser Cutting Machine
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising signs, decoration, arts and crafts, electronics, electric appliances, etc.
Applicable Materials Of Metal Nonmetal CO2 Laser Cutting Machine
Materials such as acrylic, wood planks(light planks,candlenut wood), bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, metal , stainless steel , iron , carbon steel and mild steel etc.
