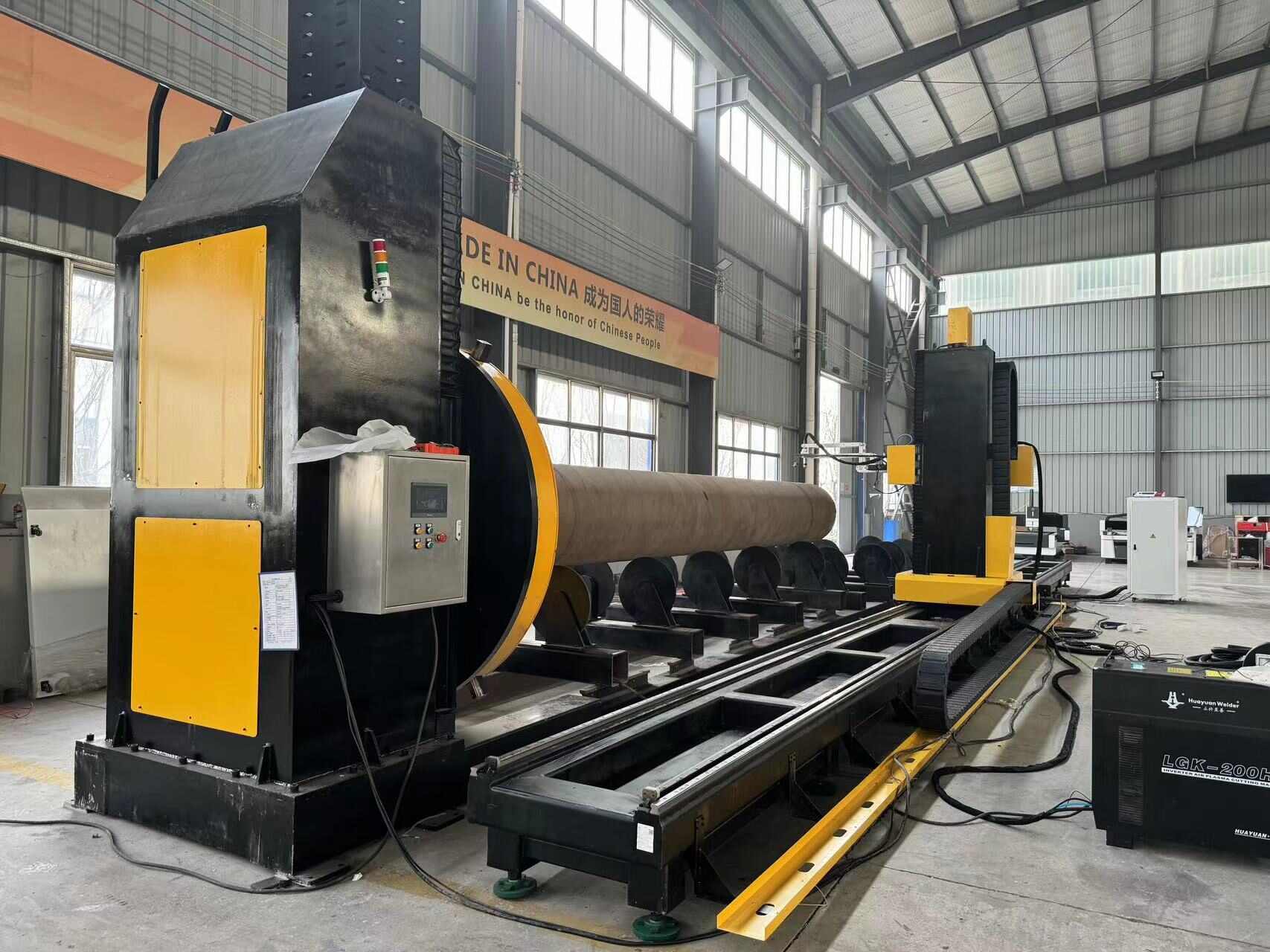

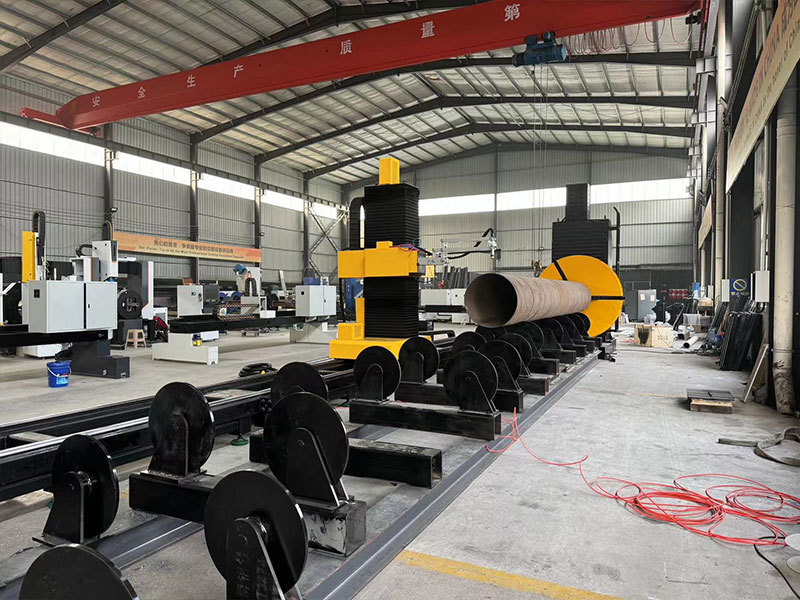

T1200 Roller Bed CNC Pipe Cutting Beveling Machine For Large Diameter
Model ：T1200、Max Cutting Length：6m / 9m / 12 m、Min Cutting Length：0.5 m
Keywords:
Plasma Cutting Machine
 |

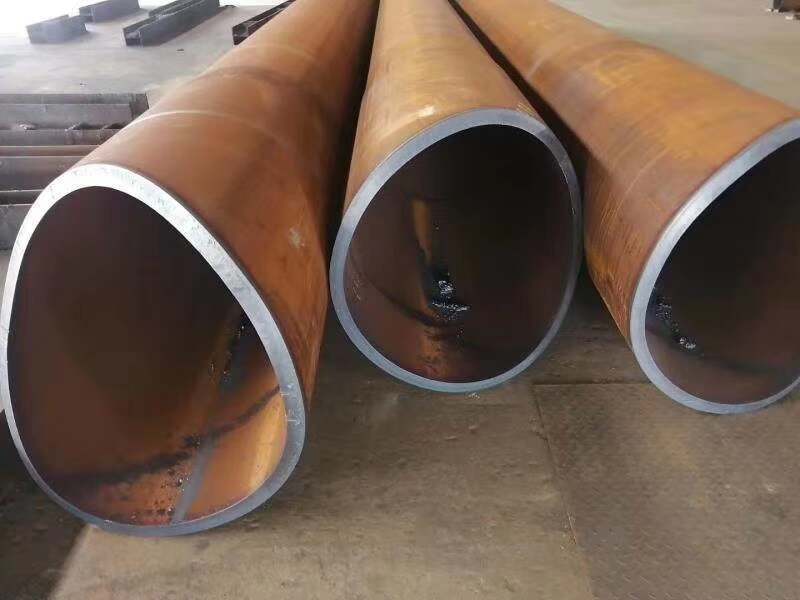

Designed for Large-Diameter Pipes: With a maximum cutting diameter of 1200mm and a minimum of 200mm, it supports cutting lengths of 6m/9m/12m, meeting the processing needs of large pipes. |
 |

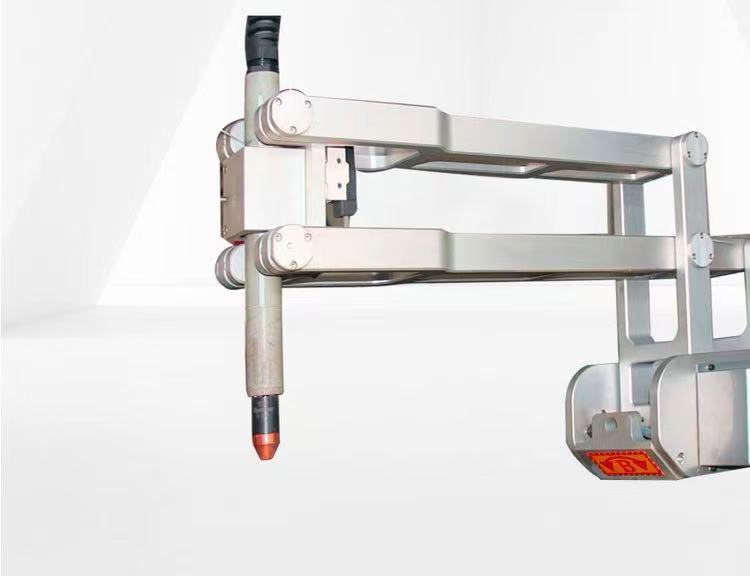

Multi-Axis Linkage for Flexible Cutting: Equipped with multiple axes such as Y, X, A, B, Z, and W. Axes A and B support ±45° swing, and axis Y allows 360° free rotation, satisfying complex bevel and multi-angle cutting requirements. |
 |

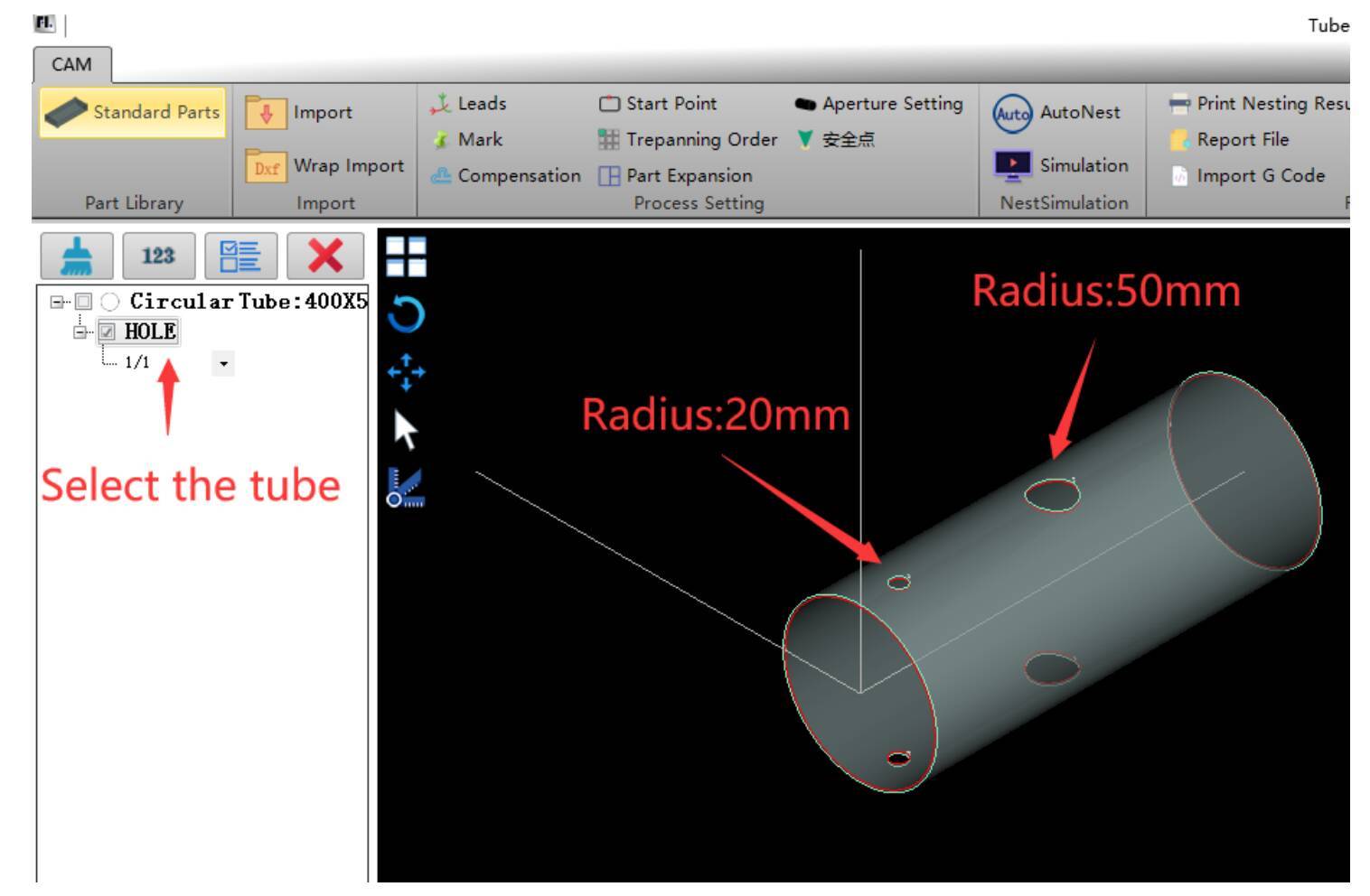

KNOPPO CNC system absorbs the advantages of many CNC systems at home and abroad, which is more humanized, easier to operate and better in performance. All operations of the system have menu or graphic prompt, which can reduce the learning cost of operators to the greatest extent. |
 |
Efficient and Stable Operation Capacity: With a maximum cutting speed of 6000mm/min and a maximum X-axis stroke of 12000mm, it is suitable for continuous processing of long pipes, improving production efficiency. |
Industry Application
 |
 |
Techinical Parameters
|
Model |
T1200 |
|
Max Cutting Length |
6m / 9m / 12 m |
|
Min Cutting Length |
0.5 m |
|
Max Cutting Diamter |
1200mm |
|
Min Cutting Diameter |
200mm |
|
Reposition precision |
0.02mm |
|
Processing precision |
0.1mm |
|
Maximum cutting speed |
6000mm/min |
|
Torch Height control mode |
Automatic |
|
Control system |
KNOPPO |
|
Electrical Supplier |
380V 50HZ / 3 Phase |
|
Move axis |
Cut axis selection | Move range |
|
Y axis |
Pipe truck rotation axis | 360 degree free rotation |
|
X axis |
Torch move along pipe horizontal axis | Max stroke 12000mm |
|
A axis |
Torch swing along pipe radial axis | +/- 45 degree |
|
B axis |
Torch swing along pipe axis direction | +/- 45 degree |
|
Z axis |
Torch shaft up and down movement | Not join linkage max stroke 770mm |
|
W axis |
Chuck can realized up and down | Max stroke 700mm |
